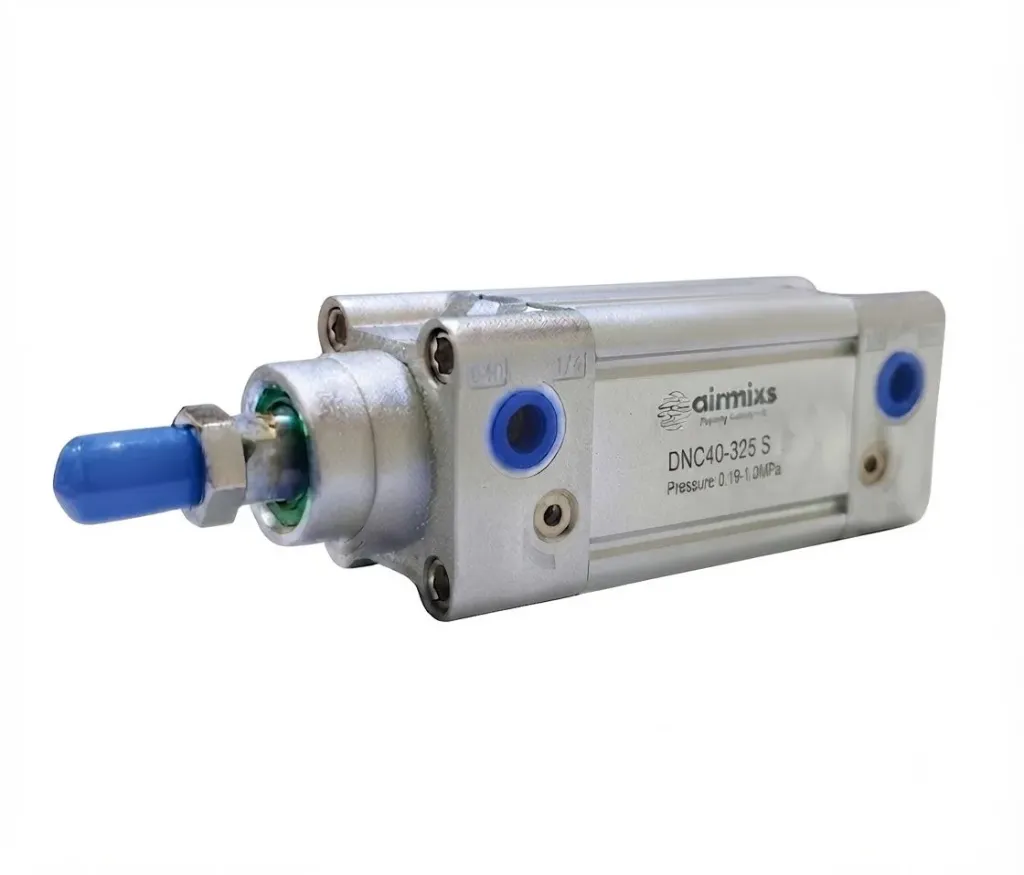

The DNC40-325 S is an ISO 15552 compliant double-acting standard pneumatic cylinder featuring a 40 mm bore and an extended 325 mm stroke length. Engineered for high-precision, long-reach linear actuation, its streamlined profile body includes integrated slots for flush-mounted proximity sensors, keeping overall dimensions compact and clutter-free.
Including a standard internal magnetic piston ("S" designation), it provides precise electronic position sensing throughout its stroke. Adjustable pneumatic end-position cushioning (PPV) at both stroke terminals dampens high kinetic energy impacts, protecting connected tooling, reducing operating noise, and ensuring consistent high-speed automation performance.
Feature | Specification |
|---|
Model Number | DNC40-325 S |
Standard Compliance | ISO 15552 (DIN ISO 6431 / VDMA 24562) |
Action Type | Double-Acting |
Piston Bore Size | 40 mm |
Stroke Length | 325 mm |
Special Feature S | Single-Rod / Magnetic Piston for Proximity Sensing |
Operating Pressure Range | 0.6 to 12 Bar (0.06 to 1.2 MPa / 87 to 174 PSI) |
Operating Temperature Range | -20°C to +80°C |
Cushioning Type | Adjustable Pneumatic End-Position Cushioning (PPV) |
Primary Operating Media | Filtered Compressed Air (Lubricated or Unlubricated) |
