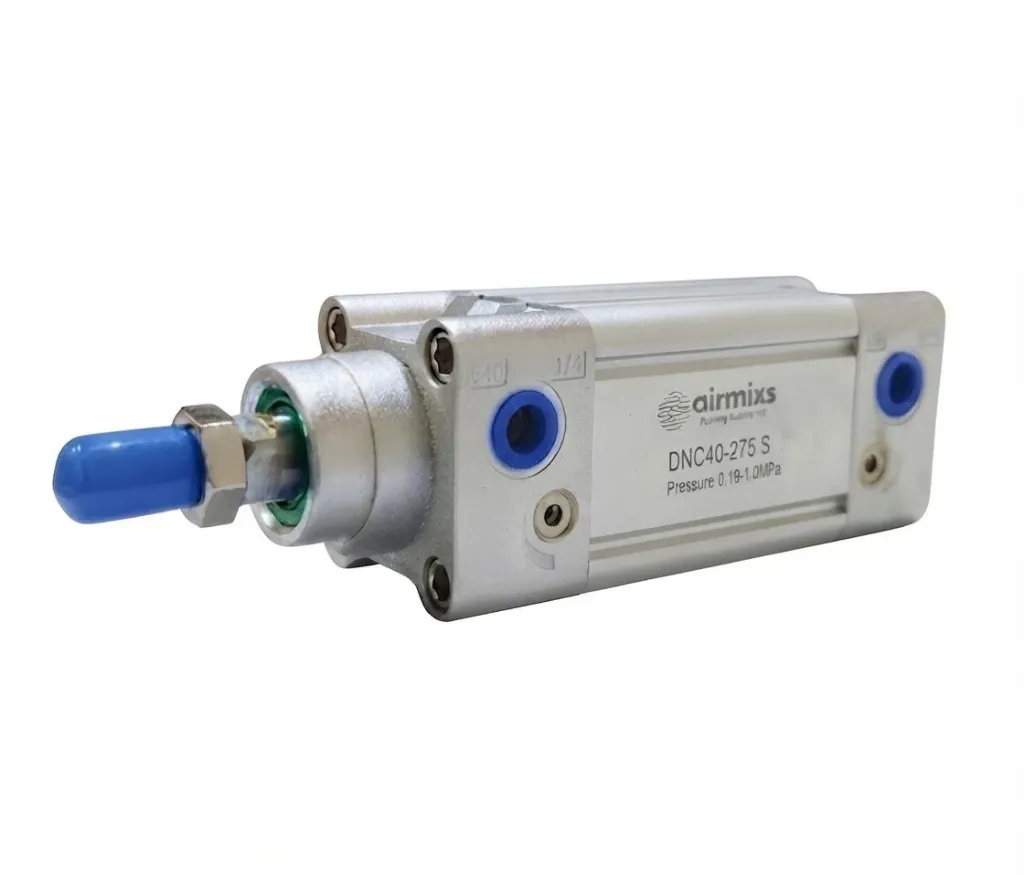

The DNC40-275 S is an ISO 15552 compliant double-acting standard pneumatic cylinder featuring a 40 mm bore and an extended 275 mm stroke length. Designed for high-performance linear motion, its profile extrusion incorporates flush sensor slots for clean, bracket-free proximity switch integration.
Equipped with a built-in magnetic piston ("S" designation), it allows seamless position feedback for automated systems. It features adjustable pneumatic end-position cushioning (PPV) at both stroke ends to absorb kinetic energy, minimize shock load, lower operating noise, and extend component service life in dynamic industrial automation processes.
Feature | Specification |
|---|
Model Number | DNC40-275 S |
Standard Compliance | ISO 15552 (DIN ISO 6431 / VDMA 24562) |
Action Type | Double-Acting |
Piston Bore Size | 40 mm |
Stroke Length | 275 mm |
Special Feature S | Single-Rod / Magnetic Piston for Proximity Sensing |
Operating Pressure Range | 0.6 to 12 Bar (0.06 to 1.2 MPa / 87 to 174 PSI) |
Operating Temperature Range | -20°C to +80°C |
Cushioning Type | Adjustable Pneumatic End-Position Cushioning (PPV) |
Primary Operating Media | Filtered Compressed Air (Lubricated or Unlubricated) |
