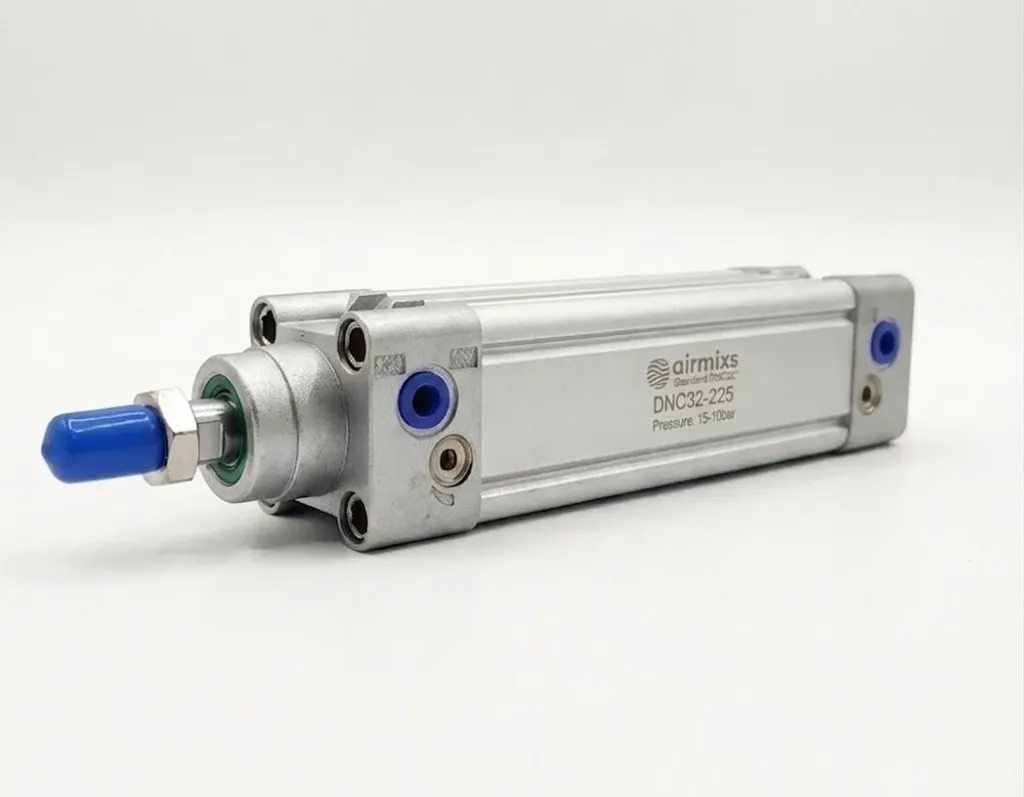

The DNC 32-225 is an industrial-grade, double-acting pneumatic profile cylinder manufactured in accordance with ISO 15552 standards. Featuring a 32mm bore diameter and a 225mm stroke length, this cylinder delivers reliable, high-force linear motion tailored for extended-reach automation tasks, heavy assembly lines, and material handling systems. It comes equipped with adjustable end-position cushioning (PPV) for smooth, impact-minimized deceleration and a built-in magnetic piston for easy proximity sensor integration.
Parameter | Specification |
|---|
Model Code | DNC-32-225 / DNC-32-225-PPV-A |
Standard Compliance | ISO 15552 / VDMA 24562 |
Bore Size (Piston Diameter) | 32 mm |
Stroke Length | 225 mm |
Operating Mode | Double-Acting |
Operating Pressure | 0.6 – 12 bar (0.06 – 1.2 MPa) |
Working Medium | Filtered Compressed Air (Lubricated or Unlubricated) |
Piston Rod Thread | M10 × 1.25 (Male Thread) |
Pneumatic Connection Port | G 1/8 |
Cushioning Type | PPV (Adjustable pneumatic end-position cushioning) |
Position Sensing | Integrated magnet for proximity switches |
Barrel Material | Anodized Wrought Aluminum Alloy |
Ambient Temperature | -20°C to +80°C |
Mounting Position | Any |
