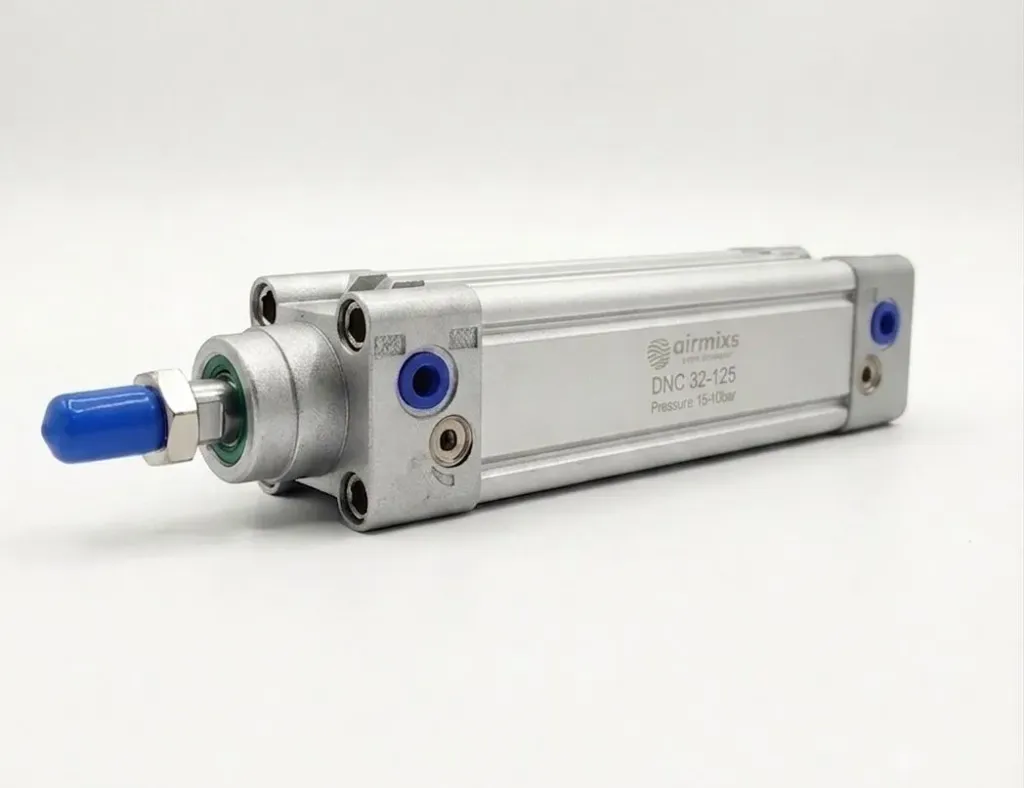

The DNC 32-125 is a high-performance, double-acting pneumatic profile cylinder manufactured to meet ISO 15552 standards. With a 32mm bore diameter and a 125mm stroke length, this cylinder offers stable linear power and extended reach for complex automation tasks, including material transfers, long-reach clamping, and automated positioning. It incorporates adjustable end-position cushioning (PPV) to absorb kinetic shock and prolong component life, as well as an internal magnetic ring for sensor-based position monitoring.
Parameter | Specification |
|---|
Model Code | DNC-32-125 / DNC-32-125-PPV-A |
Standard Compliance | ISO 15552 / VDMA 24562 |
Bore Size (Piston Diameter) | 32 mm |
Stroke Length | 125 mm |
Operating Mode | Double-Acting |
Operating Pressure | 0.6 – 12 bar (0.06 – 1.2 MPa) |
Working Medium | Filtered Compressed Air (Lubricated or Unlubricated) |
Piston Rod Thread | M10 × 1.25 (Male Thread) |
Pneumatic Connection Port | G 1/8 |
Cushioning Type | PPV (Adjustable pneumatic end-position cushioning) |
Position Sensing | Integrated magnet for proximity sensors |
Barrel Material | Anodized Wrought Aluminum Alloy |
Ambient Temperature | -20°C to +80°C |
Mounting Position | Any |
