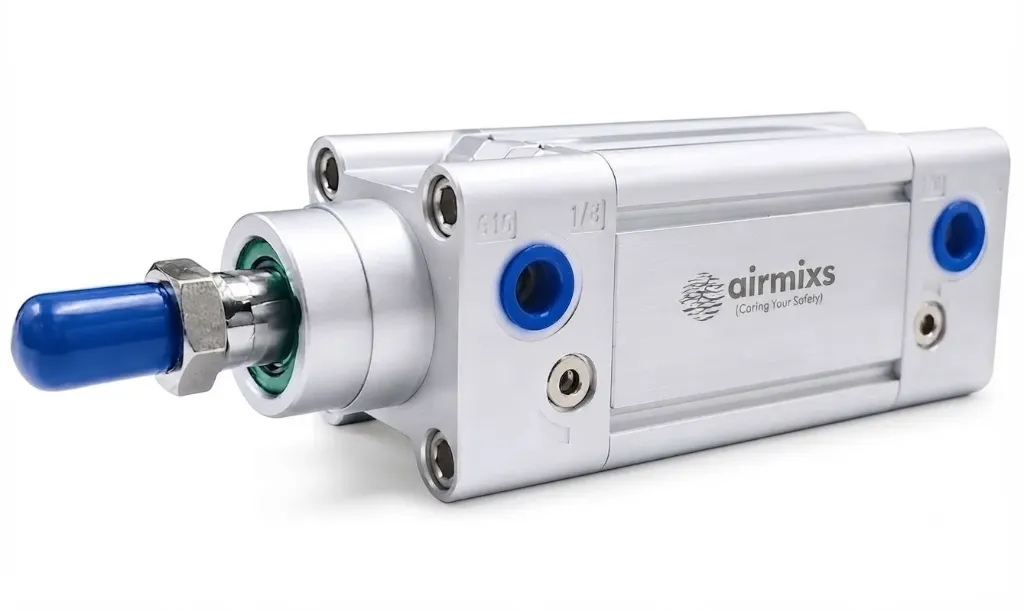

The AIRMIXS DNC100-125-S ISO Standard Pneumatic Cylinder is a heavy-duty, double-acting industrial linear actuator designed according to ISO 15552 (ISO 6431) standards. Featuring an extended 125 mm stroke and a robust 100 mm bore, it delivers reliable linear force for rigorous automation tasks, incorporating adjustable pneumatic cushioning at both ends and a magnetic piston for precise proximity switch feedback.
Feature / Specification | Detail |
|---|
Brand / Series | AIRMIXS DNC Series (ISO 15552 / ISO 6431) |
Model Code | DNC100-125-S |
Bore Size | 100 mm |
Stroke Length | 125 mm |
Action Type | Double Acting, Single Rod |
Operating Medium | Filtered Compressed Air (Lubricated or Unlubricated) |
Operating Pressure Range | 0.1 to 1.0 MPa (1.0 to 10.0 bar / 14 to 145 PSI) |
Port Size | G1/2" (1/2" BSPP) |
Piston Rod Thread | M20x1.5 |
Cushion Type | Adjustable Pneumatic Cushioning (Both Ends) |
Position Sensing | Magnetic Piston Standard (Proximity Sensor Compatible) |
Operating Temperature | -20°C to +80°C |
Body Material | Anodized Aluminum Alloy Profile Barrel |
