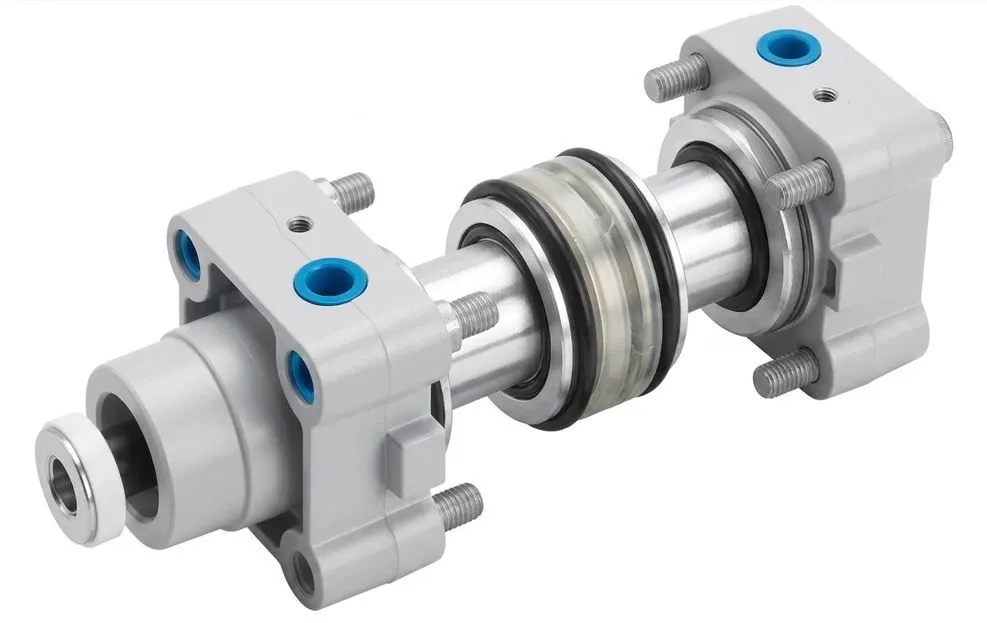

The AIRMIXS DNC-32-PPV-A is a heavy-duty double-acting standard pneumatic cylinder designed according to the ISO 15552 / VDMA 24562 standards. Featuring a 32 mm bore and custom stroke capability, this tie-rod style cylinder is built for high reliability and long operational life in industrial automation, material handling, and processing machinery.
Equipped with adjustable pneumatic cushioning at both end positions (PPV) and an integrated magnetic piston for proximity sensing (A), the DNC-32-PPV-A provides smooth deceleration, reduced kinetic shock, and precise position feedback in linear motion systems.
Specification / Feature | Value / Details |
|---|
Brand | AIRMIXS |
Part Number | DNC-32-PPV-A |
Cylinder Type | ISO Standard Tie-Rod Pneumatic Cylinder |
Standard | ISO 15552 / VDMA 24562 |
Mode of Operation | Double-acting |
Bore Size (Piston Diameter) | 32 mm |
Piston Rod End Thread | Male Thread (M10x1.25) |
Operating Pressure | 0.6 ... 10.0 bar (0.06 ... 1.0 MPa) |
Operating Medium | Compressed air (filtered, lubricated or non-lubricated) |
Cushioning | Adjustable pneumatic cushioning at both ends (PPV) |
Position Detection | Magnetic piston for proximity sensor detection (A) |
Theoretical Force at 6 bar (Advance) | ~483 N |
Theoretical Force at 6 bar (Retract) | ~415 N |
Pneumatic Port Connection | G 1/8" |
Mounting Options | Foot mounting, flange mounting, swivel clevis, or trunnion mounts |
Ambient Operating Temperature | -20°C to +80°C |
