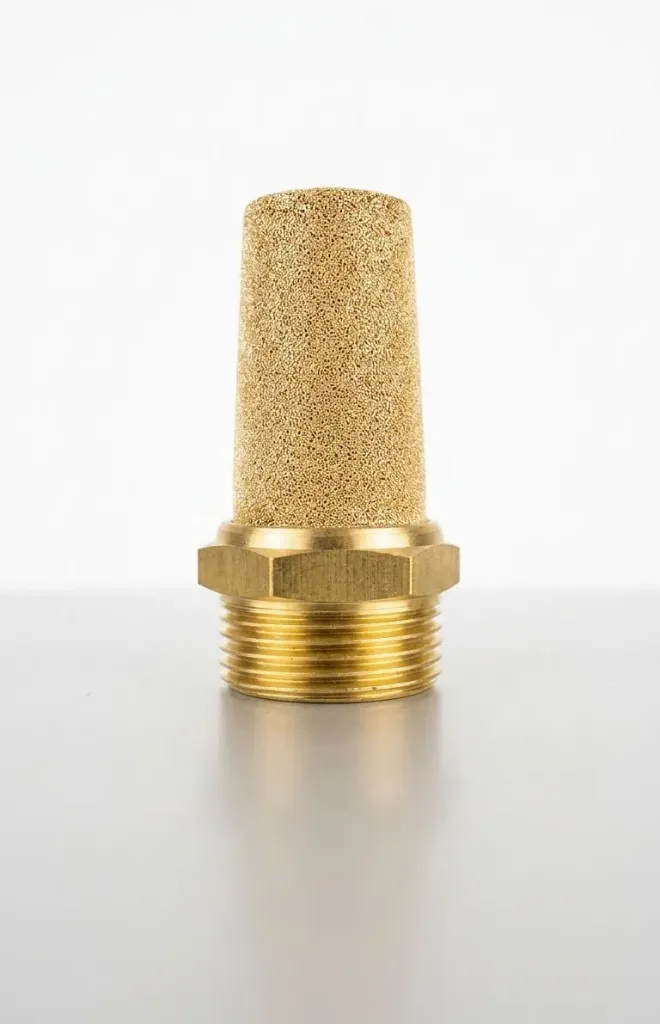

The AIRMIXS BSL-06 is a high-performance pneumatic silencer designed to reduce the dynamic noise levels of exhaust air from pneumatic components, such as valves and cylinders. Constructed with a porous sintered bronze filter element bonded to a solid brass hex base, it provides an excellent balance between noise reduction and minimal backpressure.
This industrial-grade muffler also acts as a protective filter, preventing dust, dirt, and contaminants from entering the exhaust ports of your pneumatic system, thereby extending the service life of your equipment.
Feature | Specification |
|---|
Model | BSL-06 |
Thread Size | 3/4" (available in BSPT, PT, or NPT) |
Material (Body) | Sintered Bronze (40 Micron) |
Material (Base) | Brass |
Working Medium | Compressed Air |
Working Pressure | 0 to 1.0 MPa (0 to 150 PSI) |
Max/Proof Pressure | 3.0 MPa (435 PSI) |
Operating Temp Range | -10°C to 80°C (14°F to 176°F) |
Noise Reduction | Up to 20–25 dB |
Hex Width | 27 mm |
Overall Length | Approx. 48–50 mm |
