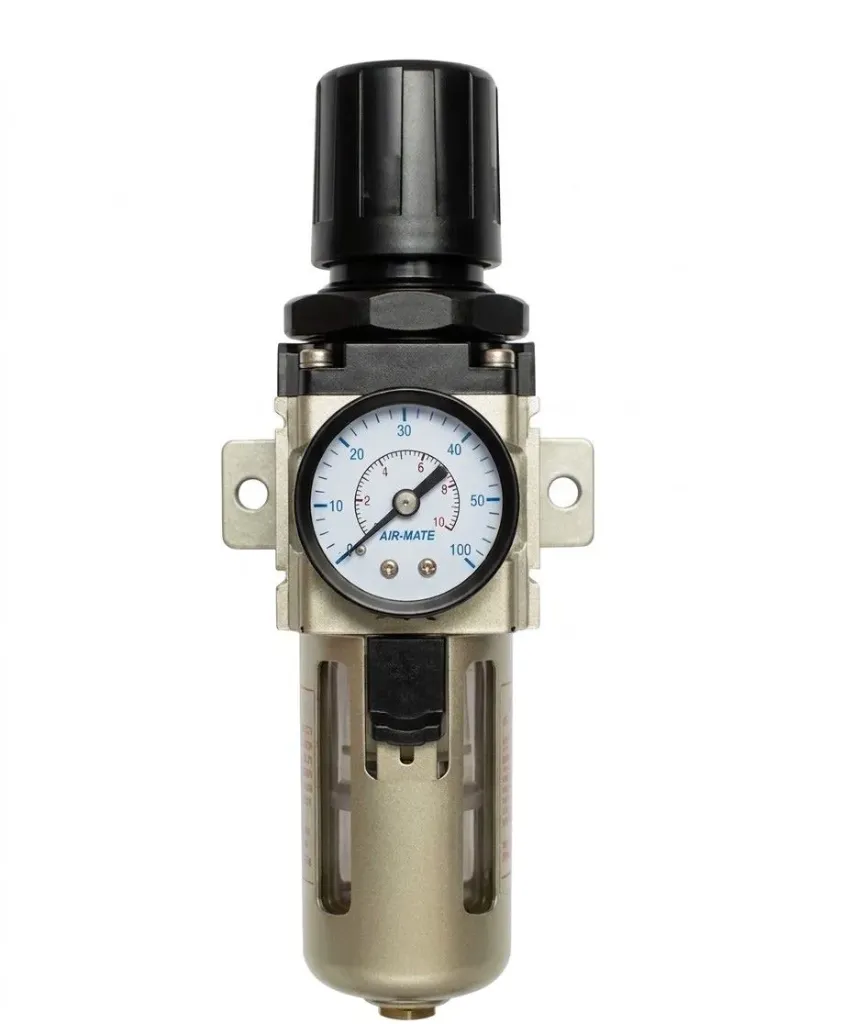

The AIRMIXS AW5000-06 Air Filter Regulator is an extra-large capacity, high-flow air preparation unit designed to filter solid/liquid contaminants and regulate air pressure within a single space-saving assembly. Featuring full G 3/4" port connections, this piggyback unit efficiently extracts moisture, oil droplets, and rust debris from compressed air lines while delivering stable, high-volume downstream pressure to heavy pneumatic machinery, large cylinders, and main distribution lines.
Constructed with a heavy-duty die-cast aluminum housing and a high-impact polycarbonate bowl enclosed in a protective steel cage, it provides exceptional long-term durability in harsh factory environments. The ergonomic top adjustment knob features a push-to-lock detent mechanism—pull up to adjust the downstream pressure, then press down to lock it in place to protect settings against operational vibration.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Model | AW5000-06 / AW5000-06D |
Component Type | Heavy-Duty High-Flow Air Filter Regulator (2-in-1 Unit) |
Port Size | G 3/4" (BSP) / NPT 3/4" |
Gauge Port Size | G 1/4" |
Filtration Rating | 25 µm (Standard) / 5 µm (Optional) |
Max Supply Pressure ($p_1$) | 1.0 MPa (10 Bar / 145 PSI) |
Proof Pressure | 1.5 MPa (15 Bar / 215 PSI) |
Adjustable Pressure Range ($p_2$) | 0.05 – 0.85 MPa (0.5 – 8.5 Bar / 7 – 123 PSI) |
Nominal Flow Rate | ~4,000 – 4,500 L/min |
Drain Type | Manual Drain / Semi-Auto Drain / Auto-Drain (Optional) |
Body Material | Heavy-Duty Die-Cast Aluminum Alloy |
Bowl Material | Polycarbonate with Protective Steel Guard |
Working Temperature Range | 5°C to 60°C (41°F to 140°F) |
Working Medium | Compressed Air / Inert Gases |
