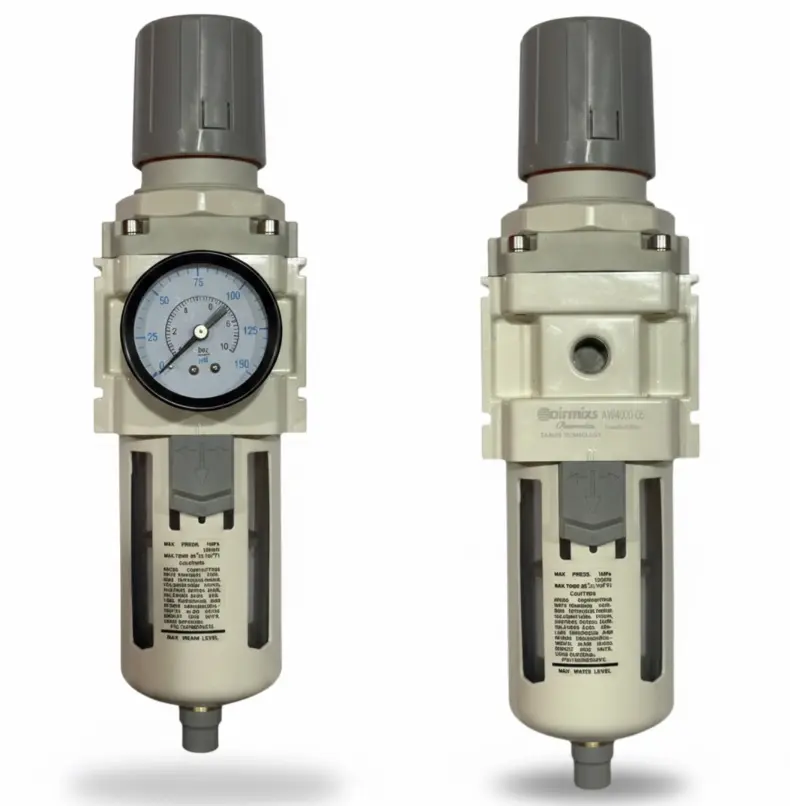

The AIRMIXS AW4000-06 provides a professional-grade solution for air preparation, combining a high-efficiency filter and a sensitive pressure regulator into a single space-saving component. With its large 3/4" ports, it is specifically designed for high-demand applications where smaller units would cause a significant drop in air volume.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model | AW4000-06 |
Port Size (Inlet/Outlet) | 3/4" BSP |
Pressure Gauge Port | 1/4" |
Flow Capacity | Approx. 4,500 L/min |
Operating Pressure Range | 0.05 to 0.85 MPa (7 to 125 PSI) |
Max. Supply Pressure | 1.0 MPa (145 PSI) |
Filtration Rating | 25 Micron(Standard Sintered Brass) |
Operating Temp. | 5°C to 60°C |
Drain Type | Manual Drain (Standard) |
