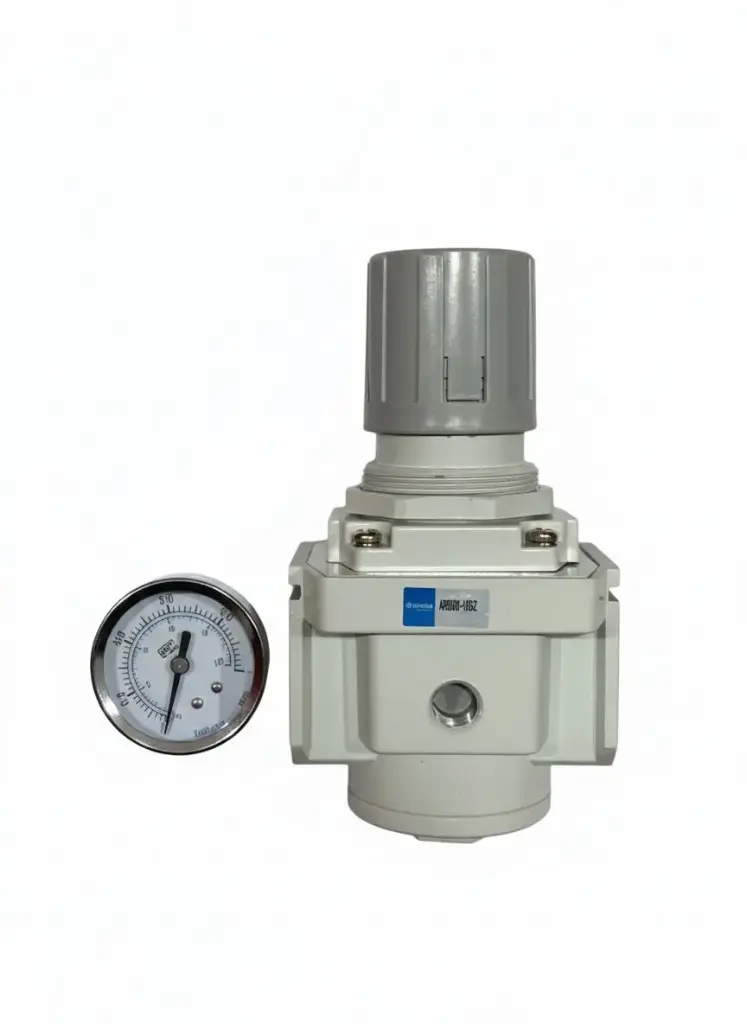

The AIRMIXS AR5000-10GZ is a heavy-duty pneumatic pressure regulator designed for high-volume air systems requiring precise and stable pressure control. As part of the modular air preparation series, it effectively manages fluctuating inlet pressures to deliver a consistent downstream output, protecting sensitive equipment from pressure surges.
This model features a large G1" port size, making it suitable for main air lines and high-flow industrial machinery. The unit is equipped with a large, easy-to-read circular pressure gauge and a "push-to-lock" adjustment knob to prevent accidental setting changes during operation.
Feature | Specification |
|---|
Model | AR5000-10GZ |
Brand | AIRMIXS Pneumatics |
Port Size | G 1" (Female Thread) |
Pressure Gauge Port | G 1/4" |
Working Medium | Compressed Air |
Operating Pressure Range | 0.05 ~ 0.85 MPa (7 ~ 123 PSI) |
Max. Supply Pressure | 1.0 MPa (145 PSI) |
Proof Pressure | 1.5 MPa (215 PSI) |
Ambient & Fluid Temp. | -5°C to 60°C (Unfreeze) |
Body Material | Aluminum Die-Cast |
Regulator Type | Relieving Type (Standard) |
