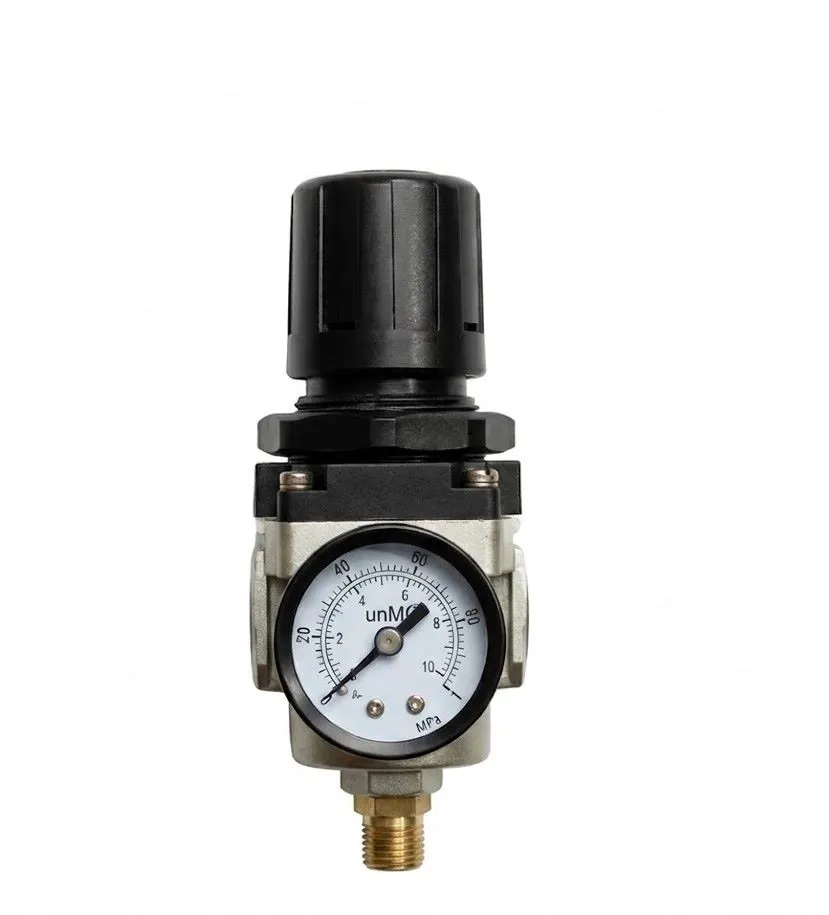

The AIRMIXS AR2000-02 Pneumatic Air Pressure Regulator is a compact, lightweight air control unit designed to deliver precise, stable downstream working pressure across small-to-medium pneumatic circuits. Featuring a standard G 1/4" port size, this regulator protects sensitive tools, cylinders, and control valves against line pressure fluctuations while maintaining optimum operational efficiency.
Constructed with a durable aluminum body and high-sensitivity diaphragm internals, it delivers excellent pressure regulation stability even during flow rate variations. The ergonomic top adjustment knob features a push-to-lock detent mechanism—pull up to adjust the pressure, then push down to lock it in place to avoid setting drift from machine vibration. Complete with a front-mounted pressure gauge and a mounting bracket, it offers a complete, easy-to-install control solution.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Model | AR2000-02 |
Component Type | Compact Pneumatic Pressure Regulator |
Port Size | G 1/4" (BSP) / NPT 1/4" |
Pressure Gauge Port | G 1/8" |
Max Supply Pressure ($p_1$) | 1.0 MPa (10 Bar / 145 PSI) |
Proof Pressure | 1.5 MPa (15 Bar / 215 PSI) |
Adjustable Pressure Range ($p_2$) | 0.05 – 0.85 MPa (0.5 – 8.5 Bar / 7 – 123 PSI) |
Nominal Flow Rate | ~550 – 750 L/min |
Body Material | Die-Cast Aluminum |
Working Temperature Range | 5°C to 60°C (41°F to 140°F) |
Working Medium | Compressed Air |
Included Accessories | Integrated Pressure Gauge & Steel Mounting Bracket |
