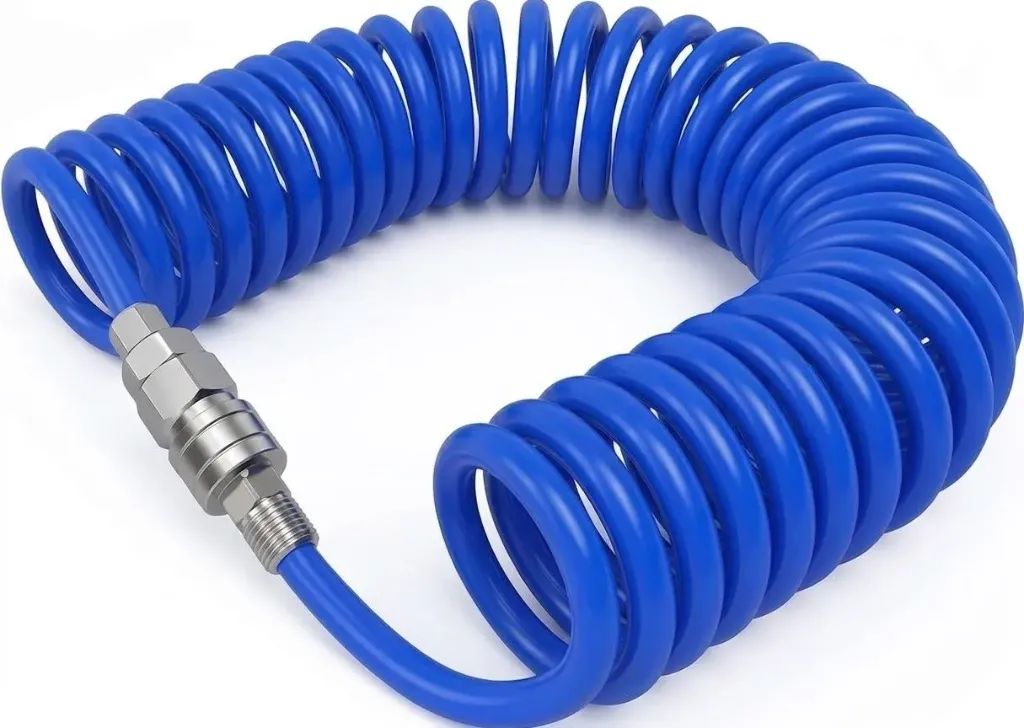

The AIRMIXS 8×5mm Recoil Spiral Polyurethane Hose (10-Meter Working Length) is a high-flexibility, self-retracting pneumatic spring tube designed for extended reach in industrial workstations, assembly lines, automotive service bays, and automated machinery. Featuring an 8mm outer diameter and a 5mm inner diameter, this coiled hose delivers optimal air volume to medium-duty pneumatic tools while expanding smoothly and recoiling automatically to keep floor spaces safe and organized.
Engineered from high-grade thermoplastic polyurethane (TPU), it offers exceptional spring memory, high kink resistance, and superior durability against oil, grease, and mechanical wear. Outfitted with heavy-duty pre-installed male swivel or spring-guarded fittings, it allows seamless connection to air compressors, blow guns, and quick-coupler lines.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Hose Type | Spiral / Recoil / Spring Polyurethane Tube |
Material | High-Grade Thermoplastic Polyurethane (TPU) |
Outer Diameter (OD) | 8 mm |
Inner Diameter (ID) | 5 mm |
Expanded Length | 10 Meters (Approx. 32.8 ft) |
Resting / Coiled Length | ~35 – 45 cm |
Color | Blue |
End Fittings | Male Threaded Swivel Couplers with Spring Strain Relief |
Working Pressure | 8 – 10 Bar (approx. 116 – 145 PSI) |
Bursting Pressure (20°C) | 24 – 30 Bar (approx. 350 PSI) |
Working Temperature Range | -20°C to +60°C (-4°F to 140°F) |
Hardness Standard | Shore A 95 |
