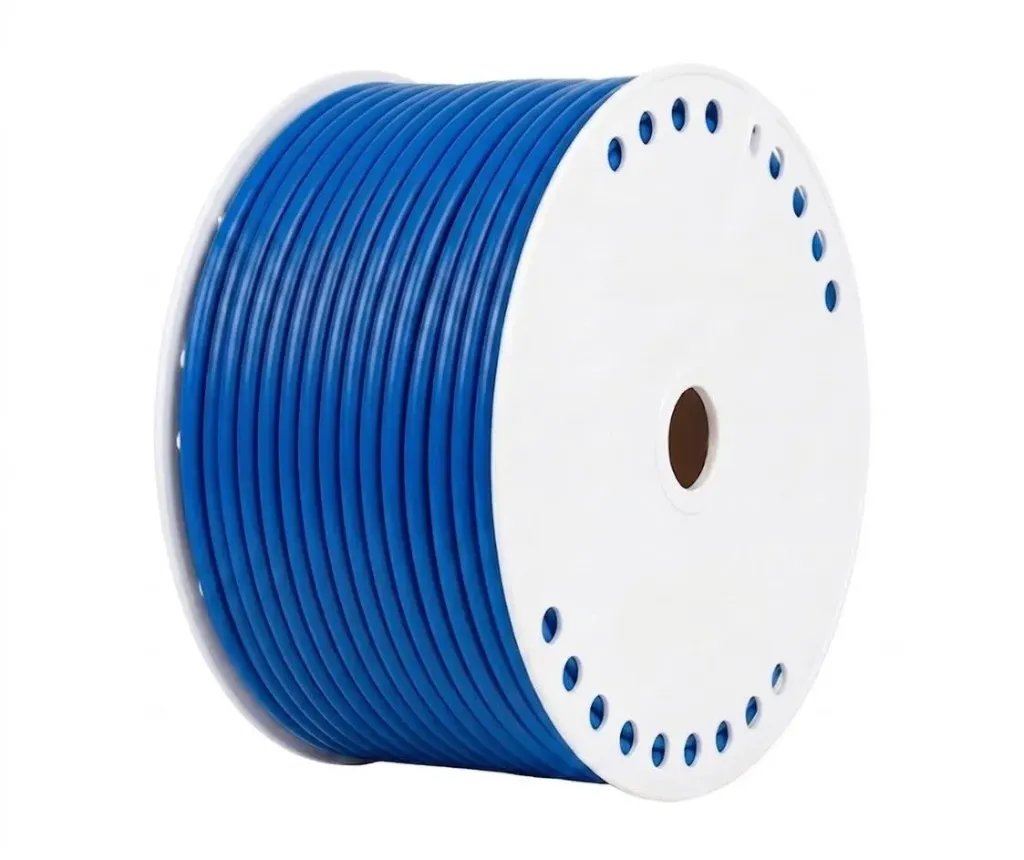

The AIRMIXS 5/16" Polyurethane Pneumatic Tubing in Blue is an ideal medium-capacity hose designed for reliable air signal transmission, pneumatic tools, cylinder actuation, and automated assembly equipment. Featuring a 5/16-inch outer diameter (8mm) and a 3/16-inch inner diameter (5.5mm), this 100-meter continuous roll delivers optimal airflow and pressure efficiency across a broad range of industrial applications.
Constructed from high-grade thermoplastic polyurethane (TPU), it provides high elasticity, superior kink resistance, and excellent protection against oils, chemicals, and mechanical abrasion. Its vibrant blue casing enables effortless circuit organization and rapid line identification within complex pneumatic control panels and factory setups.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Material | Thermoplastic Polyurethane (TPU) |
Outer Diameter (OD) | 5/16" (8.0 mm) |
Inner Diameter (ID) | 3/16" (5.5 mm) |
Roll Length | 100 Meters (328 ft) |
Color | Blue |
Working Pressure | 8 – 10 Bar (approx. 116 – 145 PSI) |
Bursting Pressure (20°C) | 20 – 24 kgf/cm² (approx. 20 Bar / 290 PSI) |
Working Temperature Range | -20°C to +60°C (-4°F to 140°F) |
Minimum Bend Radius | ~20 – 22 mm |
Dimensional Tolerance | ±0.05 mm |
Fluid Compatibility | Compressed air, non-corrosive gases, light liquids, air signal lines |
Hardness Standard | Shore A 95 |
