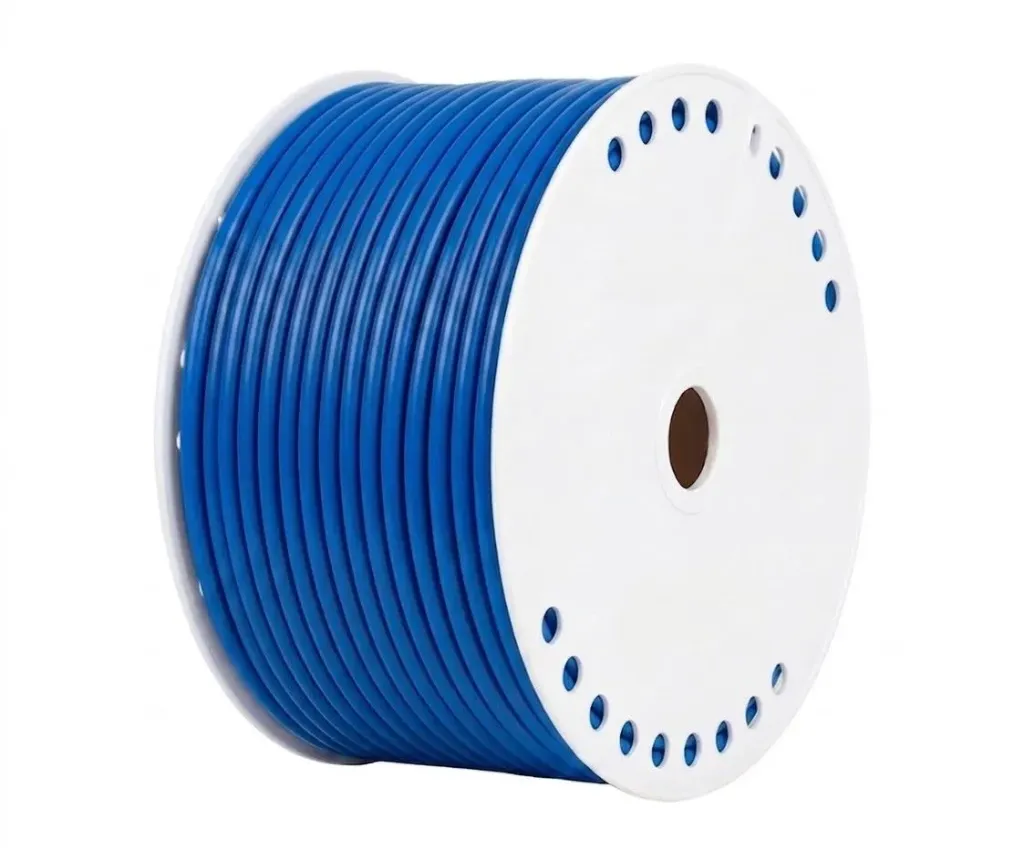

The AIRMIXS 1/8" Polyurethane Pneumatic Tubingin Blue is an ultra-compact micro-bore air hose designed for high-density, precision pneumatic circuits and space-restricted automation setups. Featuring a 1/8-inch outer diameter (3.18mm) and a 5/64-inch inner diameter (2.0mm), this 100-meter continuous roll provides smooth, reliable airflow for miniature logic valves, air signal lines, micro-actuators, and laboratory automation.
Manufactured from premium thermoplastic polyurethane (TPU), it offers exceptional elasticity, superior kink resistance, and outstanding shape memory. Its vibrant blue coating facilitates instant line identification and clean circuit management across complex control cabinets and compact industrial machinery.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Material | Thermoplastic Polyurethane (TPU) |
Outer Diameter (OD) | 1/8" (3.18 mm) |
Inner Diameter (ID) | 5/64" (2.0 mm) |
Roll Length | 100 Meters (328 ft) |
Color | Blue |
Working Pressure | 8 – 10 Bar (approx. 116 – 145 PSI) |
Bursting Pressure (20°C) | 20 – 24 kgf/cm² (approx. 20 Bar / 290 PSI) |
Working Temperature Range | -20°C to +60°C (-4°F to 140°F) |
Minimum Bend Radius | ~10 – 12 mm |
Dimensional Tolerance | ±0.05 mm |
Fluid Compatibility | Compressed air, non-corrosive gases, air signal lines |
Hardness Standard | Shore A 95 |
