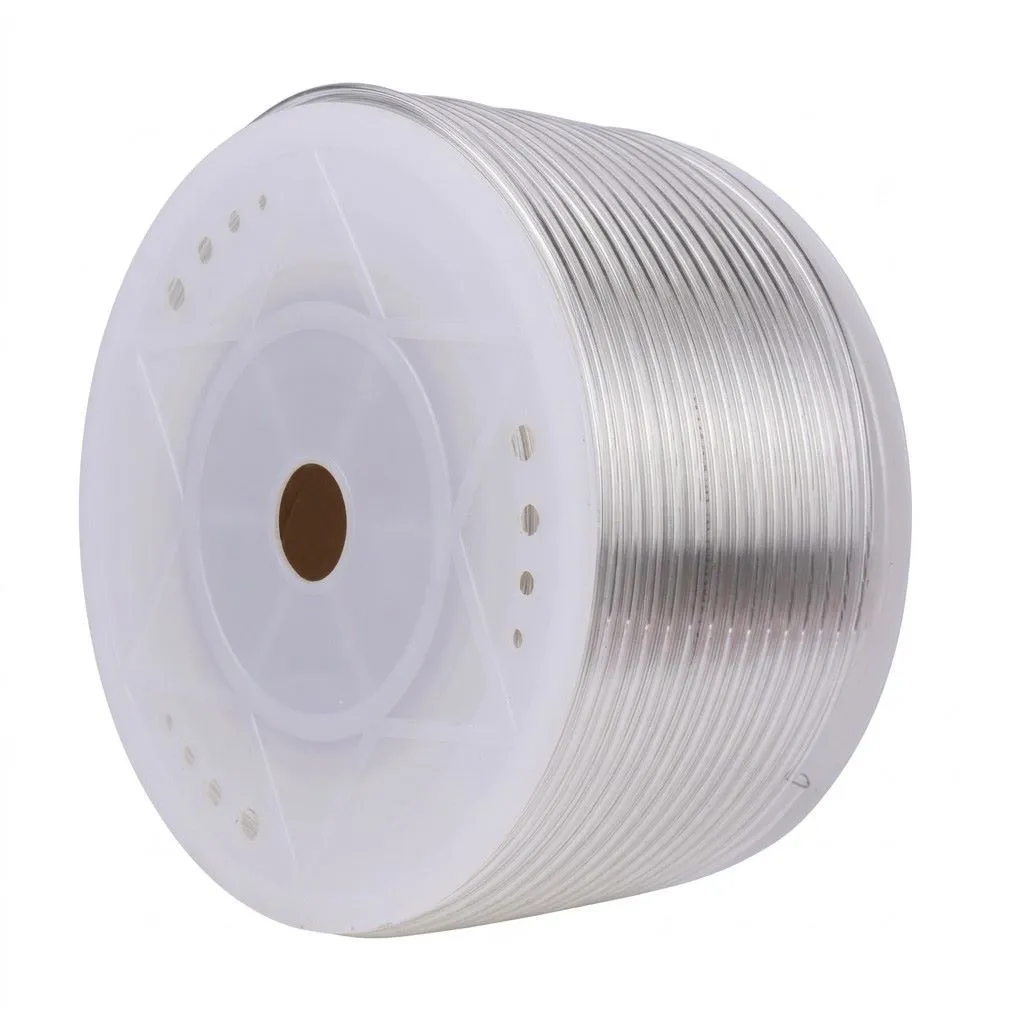

The AIRMIXS 16×12mm Polyurethane Pneumatic Tubing in Transparent finish combines high-volume airflow performance with visual fluid inspection capabilities. Engineered with a large 16mm outer diameter and 12mm inner diameter, this 100-meter continuous roll minimizes flow restrictions and pressure drops across extensive pneumatic circuits, main air delivery lines, and automated equipment.
Formulated from high-purity thermoplastic polyurethane (TPU), its clear casing enables real-time visual monitoring of media flow, air bubbles, and fluid cleanliness.It offers exceptional kink resistance, high elasticity, and outstanding protection against wear, oils, and physical abrasion, making it ideal for fluid transfer, automated assembly systems, chemical/air lines, and robotics.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Material | Thermoplastic Polyurethane (TPU) |
Outer Diameter (OD) | 16 mm |
Inner Diameter (ID) | 12 mm |
Roll Length | 100 Meters (328 ft) |
Color | Transparent / Clear |
Working Pressure | 8 – 10 Bar (approx. 116 – 145 PSI) |
Bursting Pressure (20°C) | 20 – 24 kgf/cm² (approx. 20 Bar / 290 PSI) |
Working Temperature Range | -20°C to +60°C (-4°F to 140°F) |
Minimum Bend Radius | ~90 – 95 mm |
Dimensional Tolerance | ±0.07 mm – ±0.10 mm |
Fluid Compatibility | Compressed air, non-corrosive gases, light oils, industrial water |
Hardness Standard | Shore A 95 |
