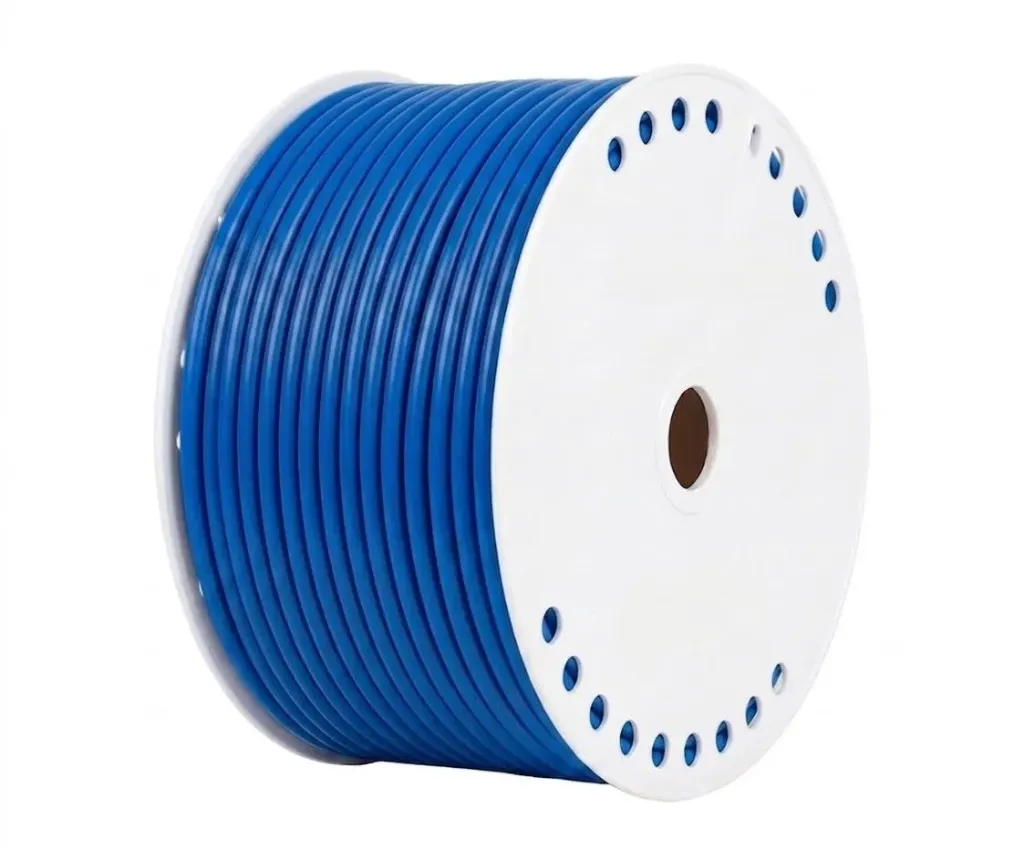

The AIRMIXS 16×12mm Polyurethane Pneumatic Tubing in Blue is a heavy-duty, large-bore air hose designed for high-flow industrial applications. Featuring a 16mm outer diameter and a 12mm inner diameter, this 100-meter continuous roll provides maximum volumetric airflow, reducing pressure drops over long tubing runs in heavy machinery, main air supply distribution lines, CNC equipment, and large-scale automation systems.
Manufactured from premium thermoplastic polyurethane (TPU), it provides outstanding resistance against oils, abrasion, and kinking while maintaining superior elasticity and shape memory. Its high-visibility blue color allows for quick line identification and systematic circuit organization across complex factory setups.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Material | Thermoplastic Polyurethane (TPU) |
Outer Diameter (OD) | 16 mm |
Inner Diameter (ID) | 12 mm |
Roll Length | 100 Meters (328 ft) |
Color | Blue |
Working Pressure | 8 – 10 Bar (approx. 116 – 145 PSI) |
Bursting Pressure (20°C) | 20 – 24 kgf/cm² (approx. 20 Bar / 290 PSI) |
Working Temperature Range | -20°C to +60°C (-4°F to 140°F) |
Minimum Bend Radius | ~90 – 95 mm |
Dimensional Tolerance | ±0.07 mm – ±0.10 mm |
Fluid Compatibility | Compressed air, non-corrosive gases, industrial water, light oils |
Hardness Standard | Shore A 95 |
