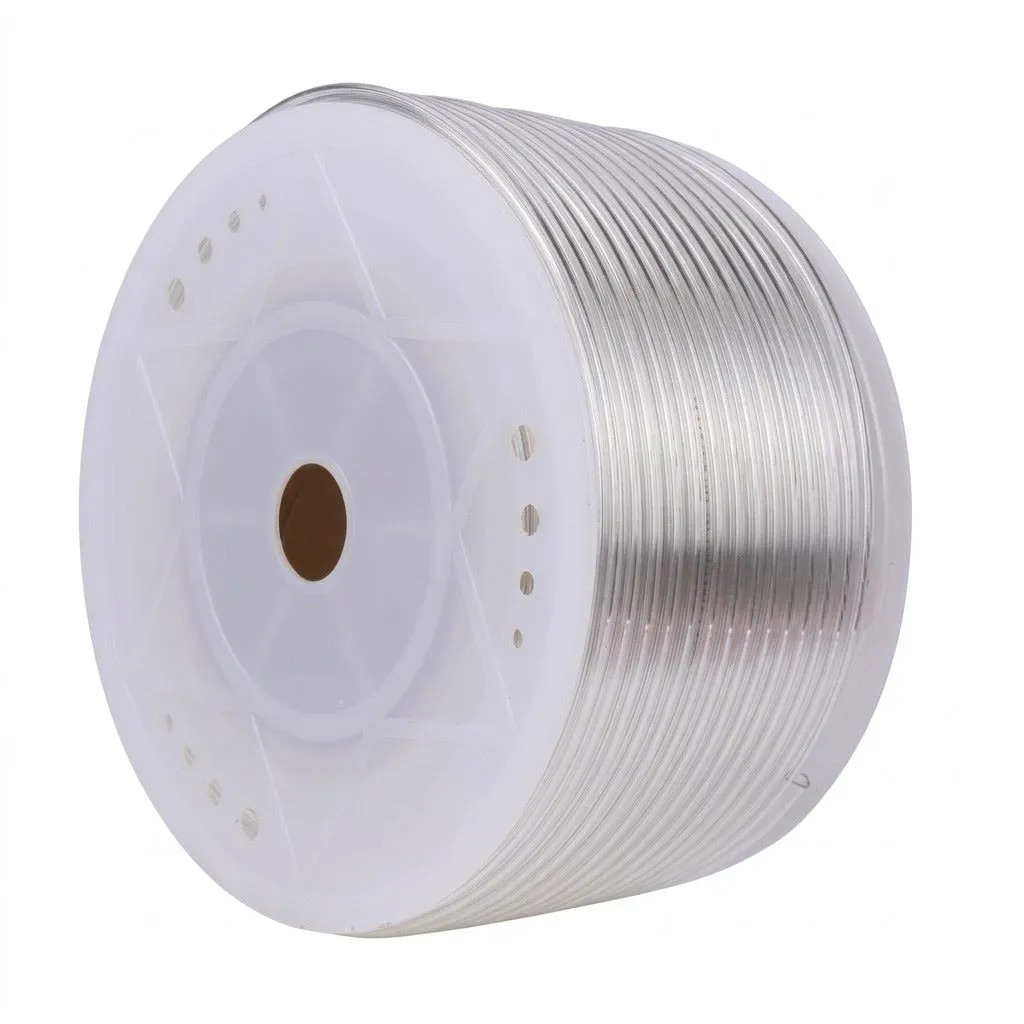

The AIRMIXS 14×10mm Polyurethane Pneumatic Tubing in Transparent finish is designed for applications where visual flow monitoring is critical. Constructed from high-grade thermoplastic polyurethane (TPU), this 100-meter roll combines high chemical resistance and exceptional flexibility with a clear casing that allows operators to easily check fluid flow, detect air bubbles, and spot contaminants in real time.
Engineered with a 14mm outer diameter and 10mm inner diameter, it resists kinking, abrasion, and oil exposure while maintaining dimensional stability under fluctuating pressure. Ideal for automated pneumatic machinery, robotics, fluid transfer systems, lab equipment, and general factory maintenance.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Material | Thermoplastic Polyurethane (TPU) |
Outer Diameter (OD) | 14 mm |
Inner Diameter (ID) | 10 mm |
Roll Length | 100 Meters (328 ft) |
Color | Transparent / Clear |
Working Pressure | 8 – 10 Bar (approx. 116 – 145 PSI) |
Bursting Pressure (20°C) | 20 – 24 kgf/cm² (approx. 20 Bar / 290 PSI) |
Working Temperature Range | -20°C to +60°C (-4°F to 140°F) |
Dimensional Tolerance | ±0.05 mm |
Abrasion Resistance | 30 mg – 40 mg |
Fluid Compatibility | Compressed air, non-corrosive gases, industrial water, light oils |
Hardness Standard | Shore A 95 |
