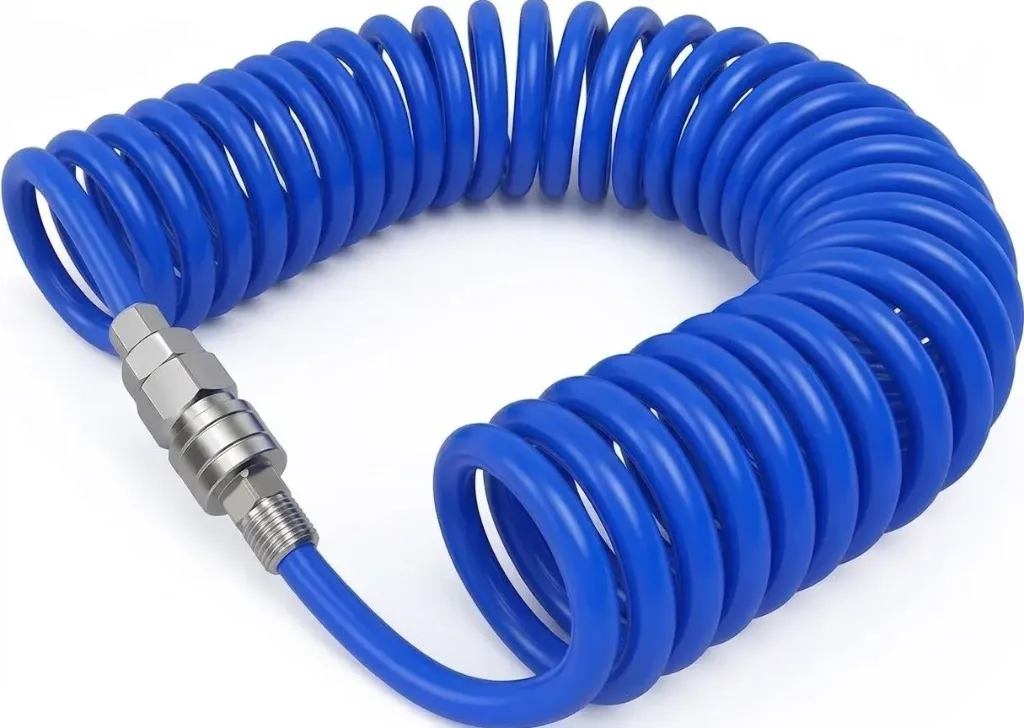

The AIRMIXS 12×8mm Recoil Spiral Polyurethane Hose (15-Meter Working Length) is an extended-reach, high-flow self-retracting pneumatic spring tube built for heavy-duty industrial tools, automotive workshops, assembly bays, and large automated machinery. Featuring a 12mm outer diameter and an 8mm inner diameter, this extra-large bore coiled hose delivers maximum volumetric airflow over longer distances while preventing pressure drops.
Manufactured from premium thermoplastic polyurethane (TPU), it provides exceptional spring memory retention, superior kink resistance, and robust protection against oils, grease, and mechanical abrasion. Equipped with heavy-duty pre-installed male swivel or spring-guarded fittings, it allows seamless connection to pneumatic equipment, impact wrenches, blow guns, and quick-coupler lines while automatically recoiling to keep floor areas tidy and trip-hazard free.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Hose Type | Spiral / Recoil / Spring Polyurethane Tube |
Material | High-Grade Thermoplastic Polyurethane (TPU) |
Outer Diameter (OD) | 12 mm |
Inner Diameter (ID) | 8 mm |
Expanded Length | 15 Meters (Approx. 49.2 ft) |
Resting / Coiled Length | ~55 – 65 cm |
Color | Blue |
End Fittings | Male Threaded Swivel Couplers with Spring Strain Relief |
Working Pressure | 8 – 10 Bar (approx. 116 – 145 PSI) |
Bursting Pressure (20°C) | 24 – 30 Bar (approx. 350 PSI) |
Working Temperature Range | -20°C to +60°C (-4°F to 140°F) |
Hardness Standard | Shore A 95 |
