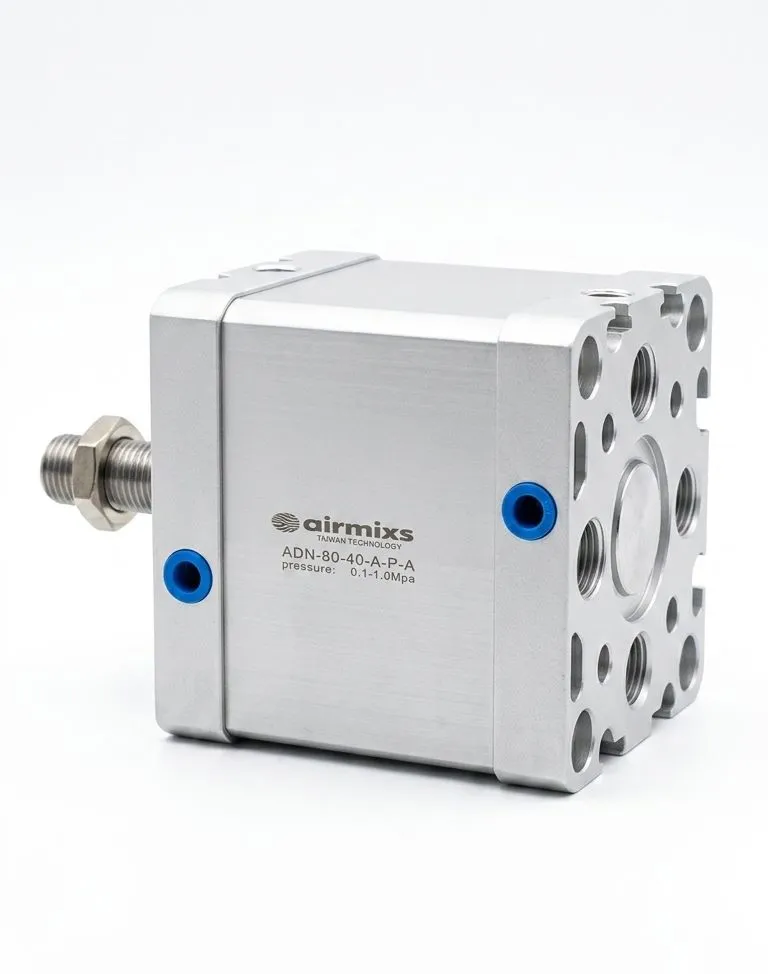

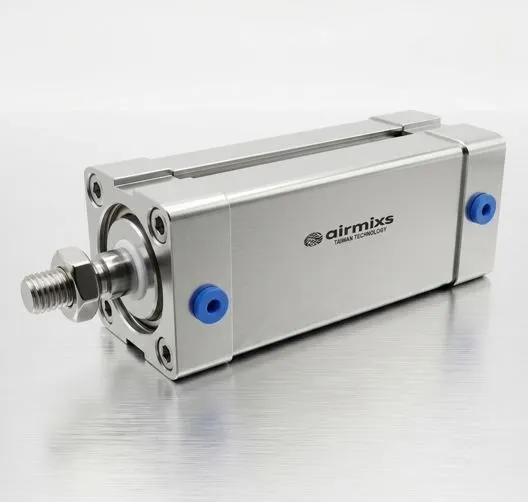

The AIRMIXS ADN-80-40-A-P-A is a high-force double-acting compact pneumatic cylinder manufactured to the ISO 21287 standard. Featuring a large 80 mm bore and a 40 mm stroke, this cylinder delivers substantial linear thrust while maintaining a compact, space-optimized housing profile—saving up to 50% mounting footprint compared to conventional ISO 15552 cylinders.
Equipped with an external male threaded piston rod (M16x1.5), integrated flexible polymer cushioning (P) at both end positions, and a magnetic piston for proximity sensing (A), the ADN-80-40-A-P-A is ideal for heavy-duty automated clamping, pressing, lifting, and material handling applications.
Specification / Feature | Value / Details |
|---|
Brand | AIRMIXS |
Part Number | ADN-80-40-A-P-A |
Cylinder Type | Compact Pneumatic Cylinder |
Standard | ISO 21287 |
Mode of Operation | Double-acting |
Bore Size (Piston Diameter) | 80 mm |
Stroke Length | 40 mm |
Piston Rod End Thread | Male Thread (M16x1.5) |
Operating Pressure | 0.6 ... 10.0 bar (0.06 ... 1.0 MPa) |
Operating Medium | Compressed air (filtered, lubricated or non-lubricated) |
Cushioning | Flexible polymer cushioning rings/plates at both ends (P) |
Position Detection | Magnetic piston for proximity sensor detection (A) |
Theoretical Force at 6 bar (Advance) | ~3016 N |
Theoretical Force at 6 bar (Retract) | ~2827 N |
Pneumatic Port Connection | G 1/8" |
Mounting Options | Through-hole mounting, female body threads, or accessory flanges |
Ambient Operating Temperature | -20°C to +80°C |
