High-Performance Linear Actuation in a Space-Saving Form Factor

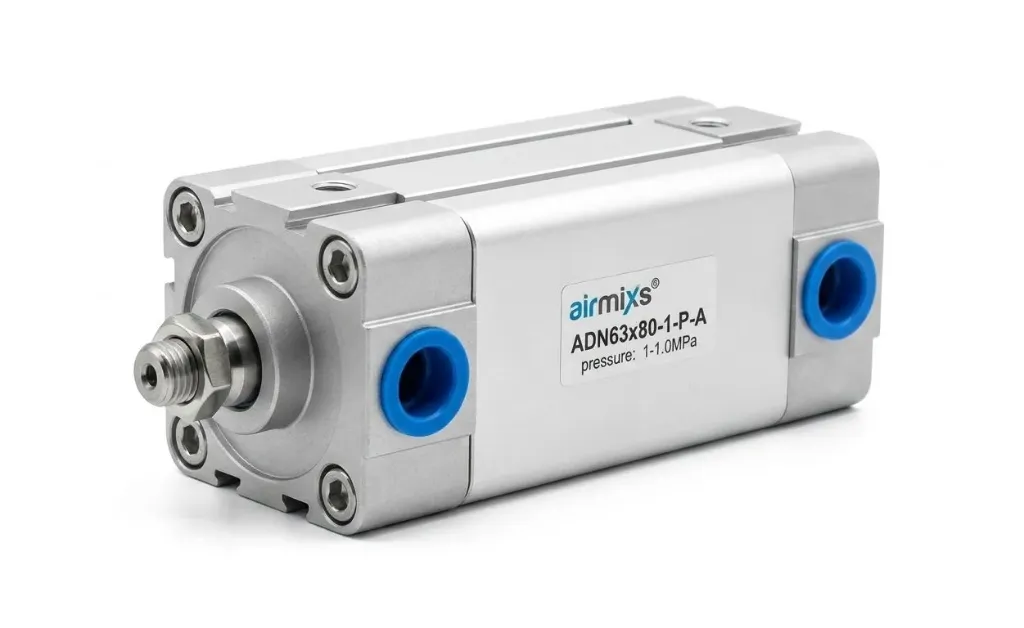

The AIRMIXS ADN-63-80-I-P-A is a premium double-acting compact pneumatic cylinder designed to meet rigid ISO 21287 standards. Built for automated systems where space is a premium but force cannot be compromised, this cylinder offers a highly reduced overall length compared to conventional tie-rod variants without sacrificing structural integrity.
Boasting a powerful 63mm bore paired with a generous 80mm stroke length, this unit handles mid-to-high load material handling, stopping, pushing, and lifting operations seamlessly. It features standard built-in magnetic tracking for proximity sensor integration and flexible, internal elastic cushioning rings to minimize end-of-stroke impact, reducing mechanical noise and maximizing machinery lifespan.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model Code | ADN63X80-1-P-A / ADN-63-80-I-P-A |
Cylinder Type | Compact ISO 21287 Cylinder |
Action Type | Double-Acting (Air-driven extension and retraction) |
Bore Size (Diameter) | 63 mm |
Stroke Length | 80 mm |
Piston Rod End | I:Female Internal Thread (with external hex nut adapter as pictured) |
Cushioning Type | P:Flexible elastic cushioning rings/plates at both ends |
Position Sensing | A:Integrated magnetic piston for proximity switch compatibility |
Operating Pressure | 0.1 – 1.0 MPa (1.0 – 10 Bar) |
Operating Medium | Filtered compressed air (Lubricated or Non-lubricated) |
Ambient Temperature | -20°C to +80°C |
Pneumatic Connection | G 1/8" Ports |
Body Material | High-grade Anodized Aluminum Alloy |
