Compact, High-Reliability Linear Performance for Industrial Automation

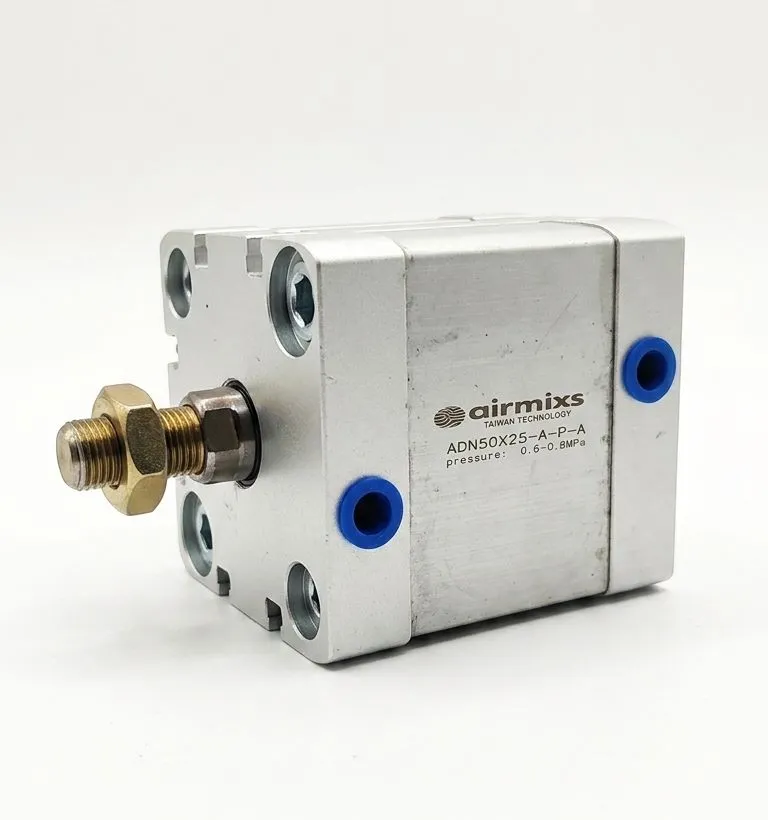

The AIRMIXS ADN-50-25-A-P-A is an industrial-grade, double-acting compact pneumatic cylinder meticulously designed to comply with standard ISO 21287 spacing configurations. Engineered specifically for modern machinery environments where mounting space is restricted, it offers a remarkably compact profile without compromising on force or operational lifespan.
Featuring a rigid 50mm bore size and a 25mm short-stroke configuration, this cylinder provides highly localized, punchy linear motion. It is optimized for clamping, stamping, rejecting, and lifting mechanisms. This unit comes standard with integrated magnetic proximity tracking for position feedback and a robust external male rod thread equipped with a locking nut for secure, versatile mechanical coupling.
Feature | Specification |
|---|
Brand | AIRMIXS (Taiwan Technology) |
Model Code | ADN50X25-A-P-A |
Cylinder Type | Compact ISO 21287 Profile Cylinder |
Action Type | Double-Acting (Air-powered extension & retraction) |
Bore Size (Diameter) | 50 mm |
Stroke Length | 25 mm |
Piston Rod End | A:Male External Thread (with hex locking nut included) |
Cushioning Type | P:Flexible elastic cushioning pads at both ends |
Position Sensing | A:Integrated magnetic piston for flush-mount sensor integration |
Operating Pressure | 0.6 – 0.8 MPa (6.0 – 8.0 Bar) |
Operating Medium | Filtered compressed air (Lubricated or Non-lubricated) |
Ambient Temperature | -20°C to +80°C |
Pneumatic Connection | G 1/8" Port threads |
Body Material | Anodized Extruded Aluminum Alloy |
