Ultra-Compact, High-Force Linear Performance for Automation Work Cells

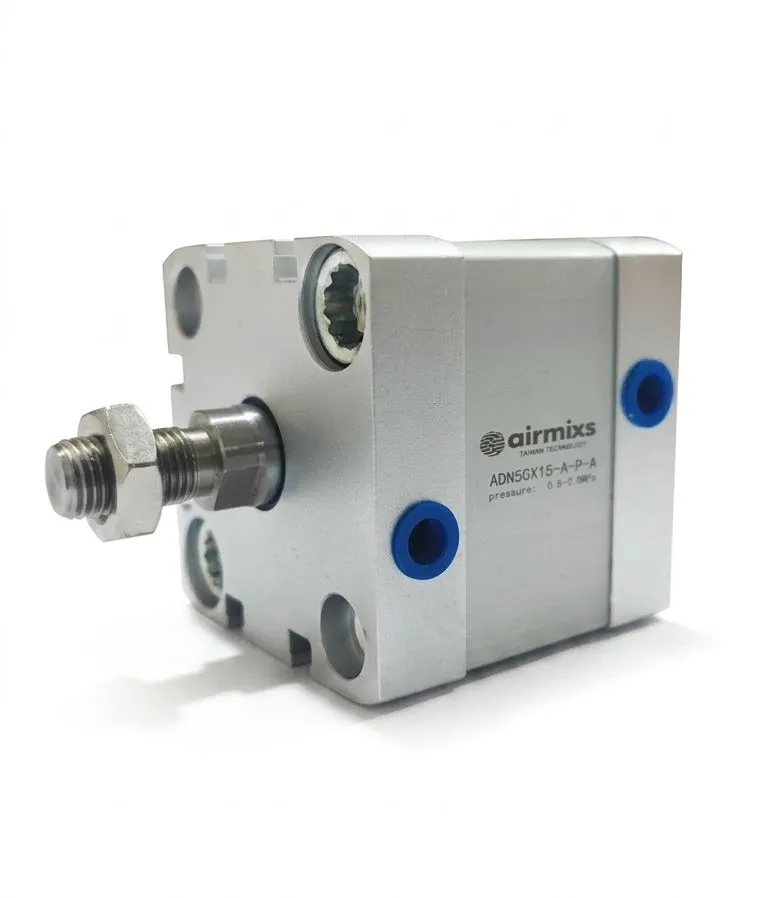

The AIRMIXS ADN-50-15-A-P-A is an industrial-grade, double-acting compact pneumatic cylinder built to fully comply with global ISO 21287 profile standards. Explicitly engineered for modern automated systems where mounting real estate is severely restricted, it offers a drastically minimized body length without compromising on structural force or operational reliability.
Featuring a heavy-duty 50mm bore diameter and an ultra-short 15mm stroke length, this compact cylinder delivers quick, high-thrust localized linear motion. It is optimized for repetitive, short-stroke operations such as high-force clamping, stamping, product rejecting, and material diverting. This model features an external male piston rod thread equipped with a hex locking nut for robust, dependable mechanical integration, along with standard integrated magnetic tracking for immediate position feedback.
Feature | Specification |
|---|
Brand | AIRMIXS (Taiwan Technology) |
Model Code | ADN50X15-A-P-A |
Cylinder Type | Compact ISO 21287 Profile Cylinder |
Action Type | Double-Acting (Air-powered extension & retraction) |
Bore Size (Diameter) | 50 mm |
Stroke Length | 15 mm |
Piston Rod End | A:Male External Thread (with hex locking nut included) |
Cushioning Type | P:Flexible elastic cushioning pads at both ends |
Position Sensing | A:Integrated magnetic piston for flush-mount sensor integration |
Operating Pressure | 0.6 – 0.8 MPa (6.0 – 8.0 Bar) |
Operating Medium | Filtered compressed air (Lubricated or Non-lubricated) |
Ambient Temperature | -20°C to +80°C |
Pneumatic Connection | G 1/8" Port threads |
Body Material | Anodized Extruded Aluminum Alloy |
