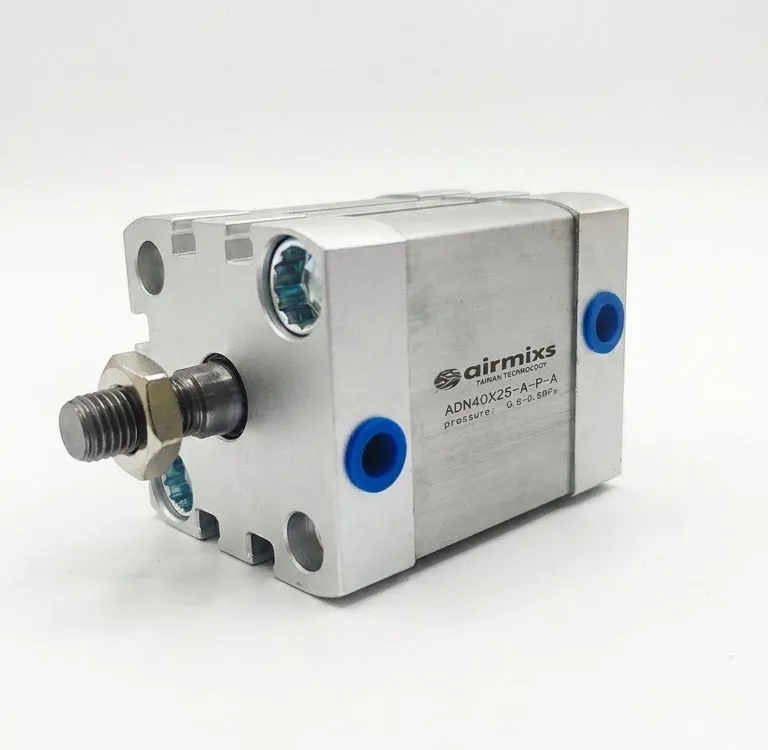

Space-Saving Efficiency and High-Force Linear Power for Industrial Automation The AIRMIXS ADN-40-25-A-P-A is an industrial-grade, double-acting compact pneumatic cylinder built to strictly conform with global ISO 21287 standard mounting specifications. Meticulously engineered for modern, space-limited automation configurations, this cylinder provides a massive reduction in footprint—up to 50% shorter body length compared to traditional tie-rod cylinders—without sacrificing mechanical integrity or performance. Outfitted with a versatile 40mm bore diameter and a 25mm short-stroke configuration, it delivers quick, punchy, and reliable linear motion optimized for high-speed material handling, precise clamping, stopping, and tooling feed applications. This model comes standard with a robust external male rod thread and an adjustable hex locking nut for dependable mechanical coupling, alongside integrated magnetic tracking for immediate position feedback.
Feature | Specification |
|---|
Brand | AIRMIXS (Taiwan Technology) |
Model Code | ADN40X25-A-P-A |
Cylinder Type | Compact Profile Cylinder (ISO 21287 Compliant) |
Action Type | Double-Acting (Air-powered extension & retraction) |
Bore Size (Diameter) | 40 mm |
Stroke Length | 25 mm |
Piston Rod End | A:Male External Thread (includes a heavy-duty locking hex nut) |
Cushioning Type | P:Flexible elastic cushioning rings/pads at both ends |
Position Sensing | A:Integrated magnetic piston for proximity switch integration |
Operating Pressure | 0.6 – 0.8 MPa (6.0 – 8.0 Bar) |
Operating Medium | Filtered compressed air (Lubricated or Non-lubricated) |
Ambient Temperature | -20°C to +80°C |
Pneumatic Connection | G 1/8" Port Threads |
Body Material | High-strength Wrought Aluminum Alloy (Anodized) |
