The AIRMIXS ADN40X200-A-P-A is a rugged, space-saving compact pneumatic cylinder built for high-performance linear actuation in tight industrial automation layouts. Designed in alignment with the ISO 21287 standard footprint, this double-acting cylinder features a premium anodized aluminum profile body with integrated sensor slots for neat, low-profile magnetic proximity sensing.
Engineered with built-in magnetic piston detection and flexible elastic cushioning rings at both end positions, it offers exceptionally smooth deceleration, quiet operation, and reduced mechanical wear. Excellent for material handling, packaging machinery, conveyor systems, and automated production lines.
Feature | Value |
|---|
Brand | AIRMIXS |
Model Code | ADN40X200-A-P-A |
Standard | Based on ISO 21287 |
Cylinder Type | Compact Piston Rod Cylinder |
Mode of Operation | Double-acting |
Piston Diameter (Bore) | 40 mm |
Stroke | 200 mm |
Piston-Rod End Connection | Male Thread with Hex Nut |
Cushioning Type | P: Elastic cushioning rings/plates at both ends |
Position Sensing | A: Integrated magnet for proximity sensor detection |
Operating Pressure Range | 0.6 bar to 10 bar (0.06 MPa to 1.0 MPa) |

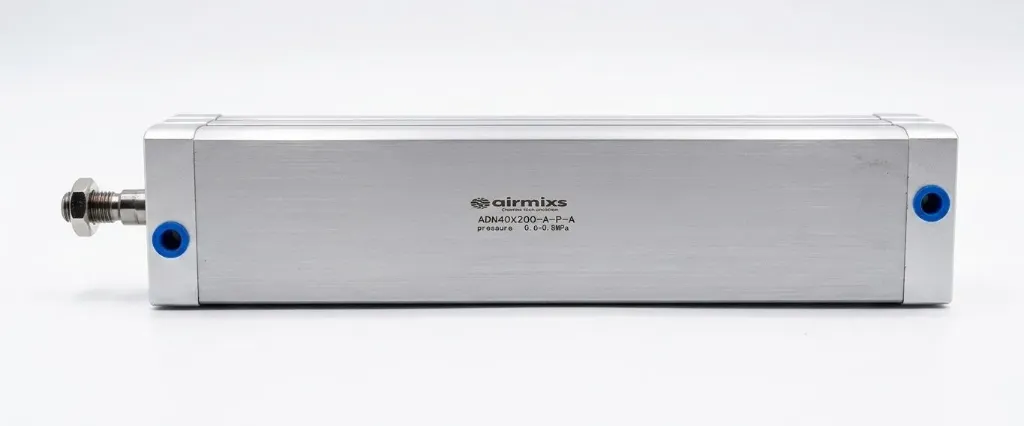

Label Pressure Rating | 0.6 – 0.8 MPa (As per laser-etched markings on AIRMIXS ADN40X200-A-P-A.jpg) |
Pneumatic Connection Port | G 1/8 |
Operating Medium | Filtered and lubricated or non-lubricated compressed air |
Mounting Type | Through-hole, internal threads, or dedicated mounting accessories |
Body Material | Anodized wrought aluminum alloy profile |
Piston Rod Material | High-alloy steel |
