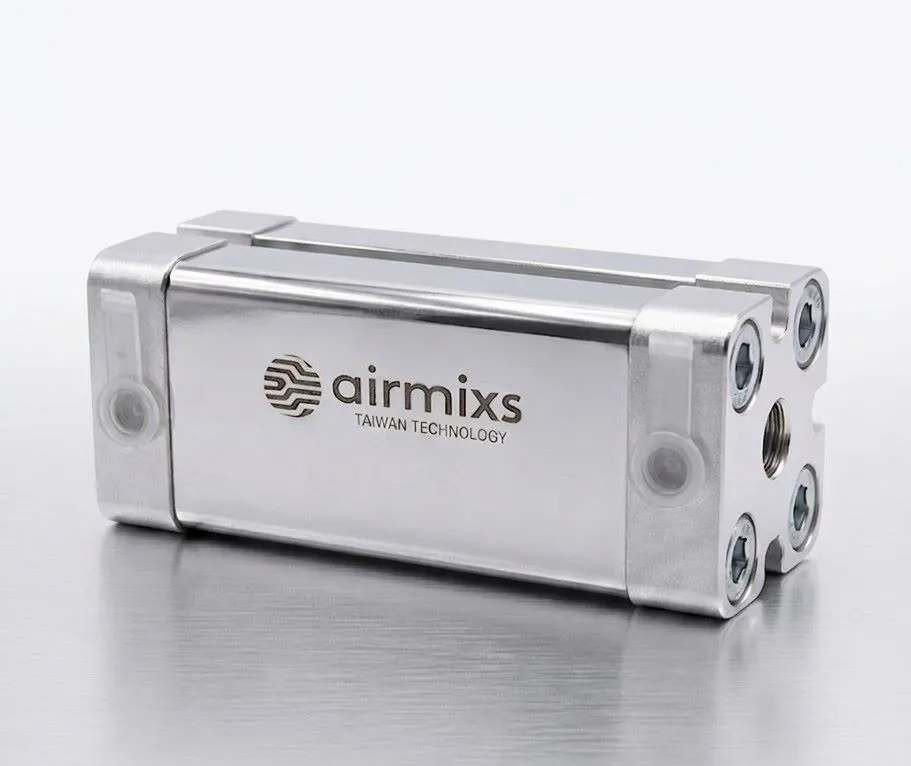

The AIRMIXS ADN-20-50-I-P-A-K5 is a double-acting compact pneumatic cylinder built according to the ISO 21287 standard. Featuring a 20 mm bore and a 50 mm stroke, this model incorporates an internal female threaded rod with a special custom thread configuration (K5 variant) for specialized tooling attachment.
Designed for space-critical automation, linear actuation, and custom machine assemblies, it features flexible polymer cushioning at both end positions and an integrated magnetic piston for non-contact proximity position detection.
Specification / Feature | Value / Details |
|---|
Brand | AIRMIXS |
Part Number | ADN-20-50-I-P-A-K5 |
Cylinder Type | Compact Pneumatic Cylinder |
Standard | ISO 21287 |
Mode of Operation | Double-acting |
Special Configuration | Special piston rod thread / custom thread (K5) |
Bore Size (Piston Diameter) | 20 mm |
Stroke Length | 50 mm |
Piston Rod End Thread | Internal Female Thread (M6 / Custom K5 specification) |
Operating Pressure | 0.6 ... 10.0 bar (0.06 ... 1.0 MPa) |
Operating Medium | Compressed air (filtered, lubricated or non-lubricated) |
Cushioning | Flexible polymer cushioning rings/plates at both ends (P) |
Position Detection | Magnetic piston for proximity sensor detection (A) |
Theoretical Force at 6 bar (Advance) | ~188 N |
Theoretical Force at 6 bar (Retract) | ~141 N |
Pneumatic Port Connection | M5 |
Mounting Options | Through-hole mounting, internal body threads, or via mounting accessories |
Ambient Operating Temperature | -20°C to +80°C |
