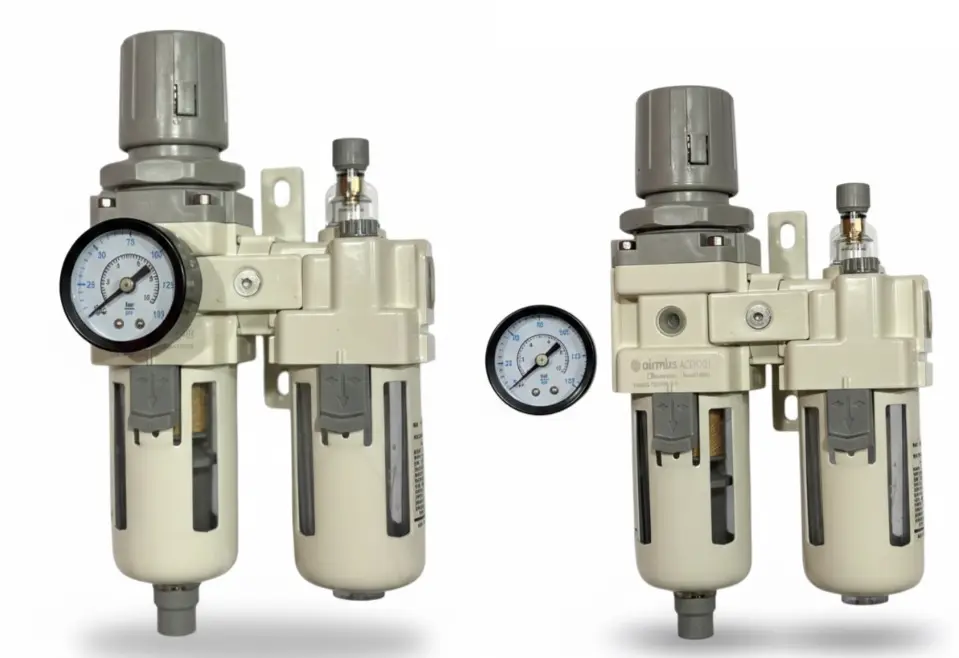

The AIRMIXS AC3010-03 offers a complete solution for air preparation. It features a modular design where the filter-regulator and the lubricator are joined by a high-strength T-bracket. This allows the user to remove or replace individual components without dismantling the entire piping system.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model | AC3010-03 (Modular FRL) |
Components | AW3000-03 (FR) + AL3000-03 (Lubricator) |
Port Size (In/Out) | 3/8" BSP |
Pressure Gauge Port | 1/8" |
Flow Capacity | 2,000 L/min(Approx. 70 SCFM) |
Set Pressure Range | 0.05 to 0.85 MPa (7 to 125 PSI) |
Max. Supply Pressure | 1.0 MPa (145 PSI) |
Filtration Rating | 25 Micron(Sintered Brass Element) |
Operating Temp. | 5°C to 60°C |
Drain Type | Manual Drain (Standard) |
