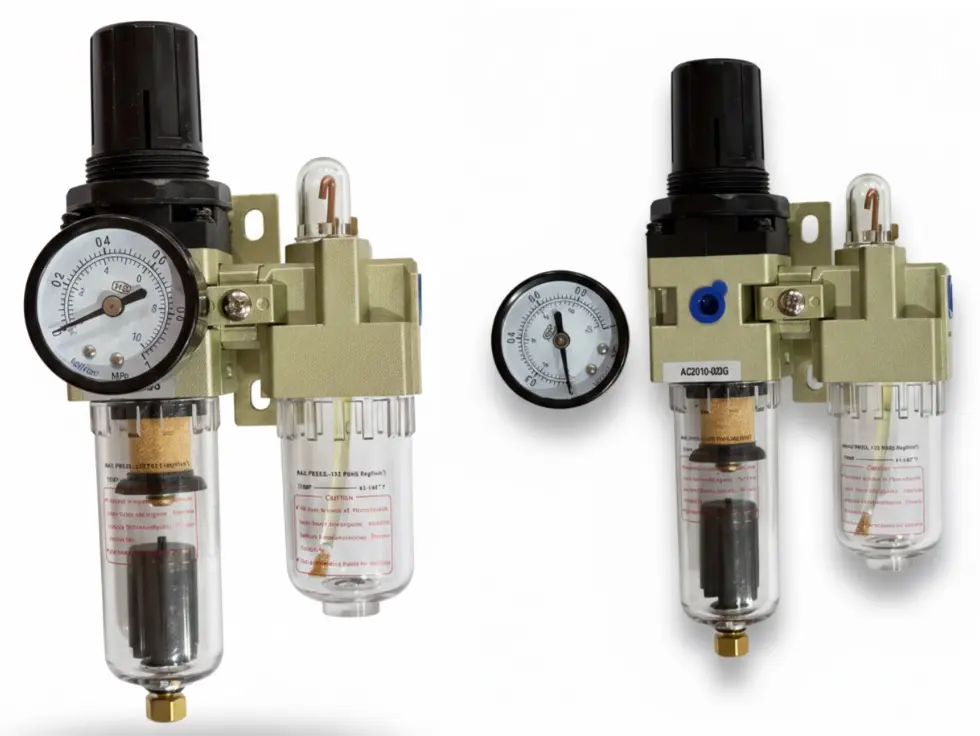

The AIRMIXS AC2010-02DG is a "Full-Service" air preparation station. It effectively integrates a water-removal filter, a precision pressure regulator, and a micro-mist lubricator into a modular frame that is easy to mount and maintain.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model | AC2010-02DG |
Components | Filter-Regulator (AW) + Lubricator (AL) |
Port Size | 1/4" BSP |
Pressure Gauge Port | 1/8" |
Filtration Rating | 25 Micron(Sintered Brass Element) |
Operating Pressure Range | 0.05 to 0.85 MPa (7 to 125 PSI) |
Max. Supply Pressure | 1.0 MPa (145 PSI) |
Flow Capacity | Approx. 500 L/min |
Operating Temp. | 5°C to 60°C |
Drain Type | Manual Drain |
