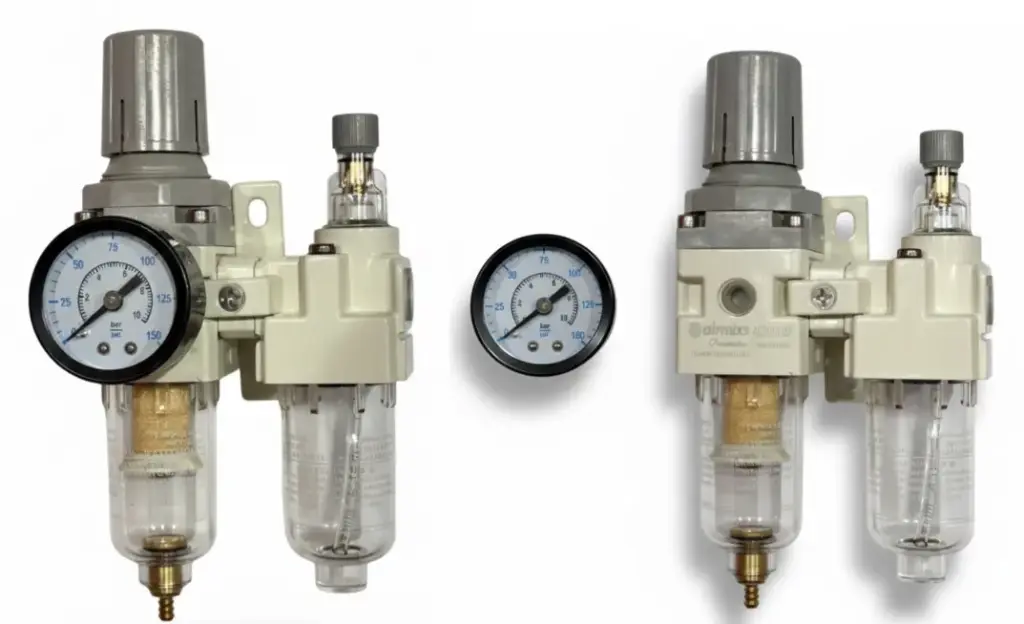

The AIRMIXS AC2010-02 is a "Full-Service" air preparation station. It utilizes a modular design that connects the Filter-Regulator unit to the Lubricator unit using a T-bracket system. This allow for easy maintenance or the future addition of secondary components without re-piping the entire line.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model | AC2010-02 (Modular FRL) |
Components | AW2000-02 (FR) + AL2000-02 (Lubricator) |
Port Size | 1/4" BSP |
Pressure Gauge Port | 1/8" |
Filtration Rating | 25 Micron(Sintered Brass Element) |
Operating Pressure Range | 0.05 to 0.85 MPa (7 to 125 PSI) |
Max. Supply Pressure | 1.0 MPa (145 PSI) |
Flow Capacity | Approx. 500 L/min |
Operating Temp. | 5°C to 60°C |
Drain Type | Manual Drain |
