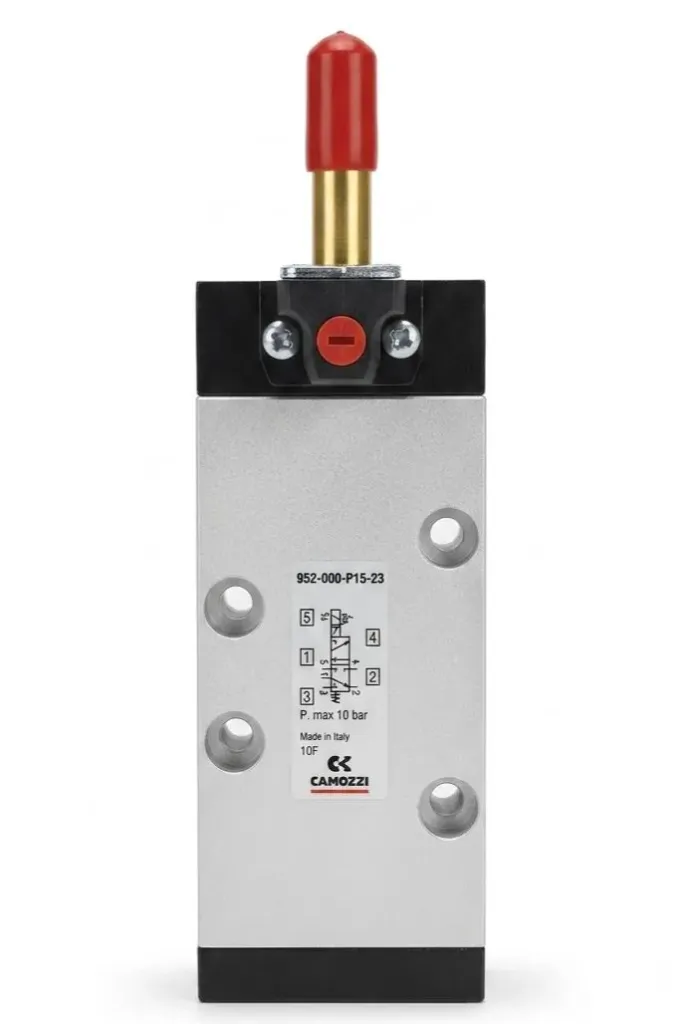

The Camozzi Mod. 952-000-P15-23 is a premium, industrial-grade 5/2-way monostable directional control spool valve designed to mount seamlessly onto a standard ISO Size 2 manifold sub-base. Engineered in compliance with international ISO 5599/1 standards, this single-solenoid electro-pneumatic valve utilizes a heavy-duty mechanical spring return and features an integrated A531-BC2 standard bistable (locking) manual override. Built for high-cycle factory automation, it delivers an impressive nominal flow rate of $1610\text{ l/min}$ to guarantee optimal response times and fluid efficiency in demanding automated systems.
Core Identification & Design
Brand: Camozzi Automation
Model Code: 952-000-P15-23
Valve Series: Series 9
Valve Function: 5/2-way (5 Ports, 2 Positions)
Actuation Type: Single Electro-Pneumatic Solenoid (Horizontal Interface)
Return/Reset Type: Mechanical Spring Return (Monostable)
Design Structure: Spool Type Valve
Manual Override: A531-BC2 Standard Bistable / Locking Manual Operator
Origin: Made in Italy
Physical & Installation Dimensions
ISO Interface Size: ISO Size 2
Pneumatic Connection: Sub-base mounting (compatible with standard G3/8 manifold sub-bases conforming to VDMA 24345)
Dimensions: 173mm (H) 51mm (W) 59mm (D)
Weight: 0.625 kg
Mounting Type: Sub-base / On-manifold block installation (supplied with 1x interface seal and 4x fixing screws
