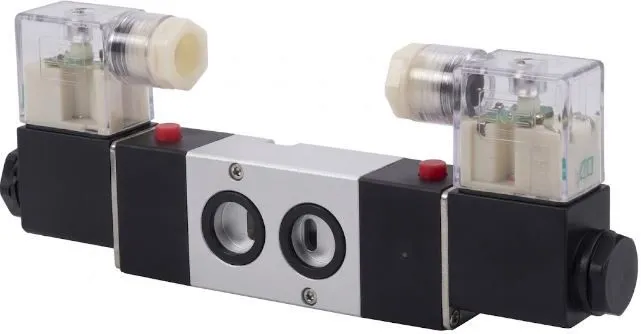

The AIRMIXS 4M320-10 is an industrial 5/2-way double solenoid Namur valve engineered for direct mounting onto pneumatic rotary actuators and process control valves. Built with a dual-solenoid (bistable) memory mechanism, this valve changes state upon receiving a brief electrical pulse to either coil and maintains its position until the secondary coil is energized, ensuring position retention during unexpected power losses.
Featuring a standardized Namur mounting interface and generous 3/8" porting, the 4M320-10 mounts flush to actuator bodies without external interconnecting tubing or custom brackets. Its internal pilot-operated spool design, manual testing overrides, and IP65-rated coil enclosures make it ideal for controlling double-acting quarter-turn ball valves, butterfly valve actuators, and automated process dampers across chemical plants, water treatment facilities, and industrial production lines.
Technical Parameter | Specification |
|---|
Model / Part Number | 4M320-10 |
Brand | AIRMIXS |
Valve Type | 5/2-Way Namur Solenoid Valve (Pilot Operated) |
Actuation Type | Double Solenoid (Bistable / Memory Function) |
Port Size | In/Out/Exhaust: G 3/8" (BSP) |
Mounting Pattern | Standard Namur Interface |
Working Medium | Compressed Air (Filtered \le40 µm) |
Operating Pressure Range | 0.15 to 0.8 MPa (1.5 to 8.0 bar / 22 to 116 PSI) |
Proof Pressure | 1.2 MPa (12 bar / 174 PSI) |
Standard Coil Voltages | 24V DC, 220V AC, 110V AC, 12V DC |
Power Consumption | DC: 3.0W / AC: 4.5VA (per coil) |
Protection Class | IP65 (Dust-tight and Water-jet resistant with DIN connector) |
Operating Temperature Range | -20°C to +70°C |
Max. Cycle Frequency | 5 cycles / sec |
