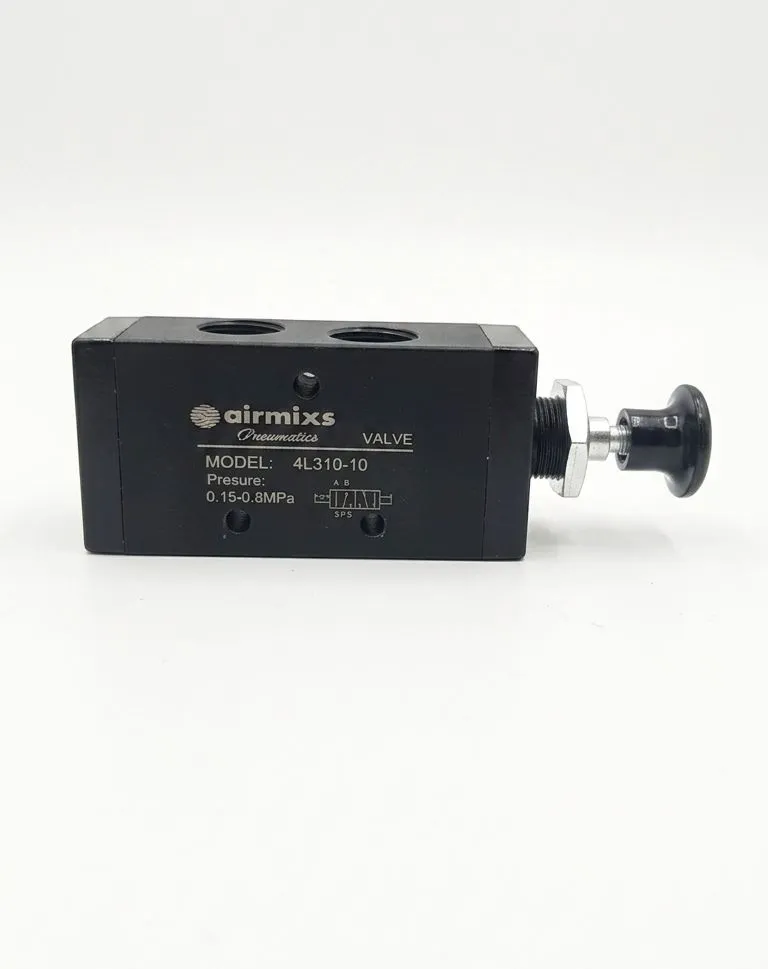

The AIRMIXS 4L310-10 is a high-flow manual control valve engineered for the precise direction of airflow in pneumatic systems. This 5-port, 2-position valve is a standard industrial solution for controlling double-acting cylinders, allowing operators to switch between extension and retraction with a simple push-pull motion.
Built with a rugged aluminum alloy body and a specialized low-friction spool, the 4L310-10 offers high reliability and a long service life. Its 3/8" port size provides a higher flow rate compared to smaller series, ensuring faster response times for larger pneumatic actuators.
Direct Acting Manual Control: Provides immediate tactile feedback and exact positioning for safety and accuracy.
Compact Spool Design: Excellent sealing performance in a space-saving housing that is easy to repair if necessary.
Advanced Surface Finishing: The internal bore is treated with a high-precision finish to minimize starting pressure and wear.
Panel Mount Capable: Features a threaded neck for secure installation on control panels, making it versatile for both mobile and stationary machinery.
Specification | Details |
|---|
Position & Way No. | 5 Port / 2 Position |
Port Size | 3/8" BSP (Air Inlet = Air Outlet = Exhaust) |
Operating Medium | 40 Micron Filtered Compressed Air |
Operating Pressure | 0.15 – 0.8 MPa (21 – 114 PSI) |
Proof Pressure | 1.2 MPa (174 PSI) |
Working Temperature | -20°C to +70°C |
Flow Capacity (Cv) | 1.65 ($28.0mm^2$Orifice) |
Lubrication | Not Required (Self-lubricating design) |
Material | Aluminum Alloy Body, NBR Seals |
