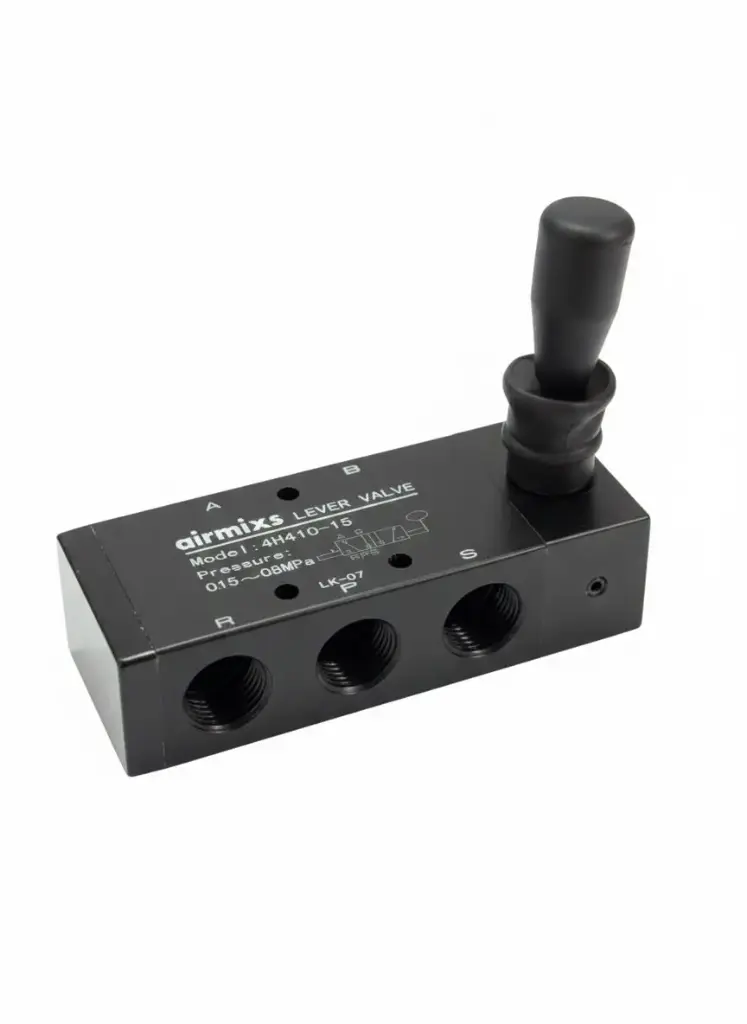

The 4H410-15 is a robust manual directional control valve used to steer compressed air to different ports to actuate double-acting pneumatic cylinders. It is highly valued for its "exact and reliable orientation," meaning the lever clicks into place (detented) so it stays in the selected position without needing to be held.
Feature | Specification |
|---|
Model | 4H410-15 |
Valve Type | 5-Port / 2-Position (5/2 Way) |
Actuator Type | Hand Lever(Detented/Manual Reset) |
Port Size | 1/2" PT / G / |
Effective Area | 50 $mm^2$(Cv = 2.79) |
Operating Pressure | 0 – 0.8 MPa(0 – 114 PSI) |
Proof Pressure | 1.5 MPa (215 PSI) |
Working Temperature | -20°C to 70°C |
Body Material | Aluminum Alloy |
Lubrication | Not Required |
