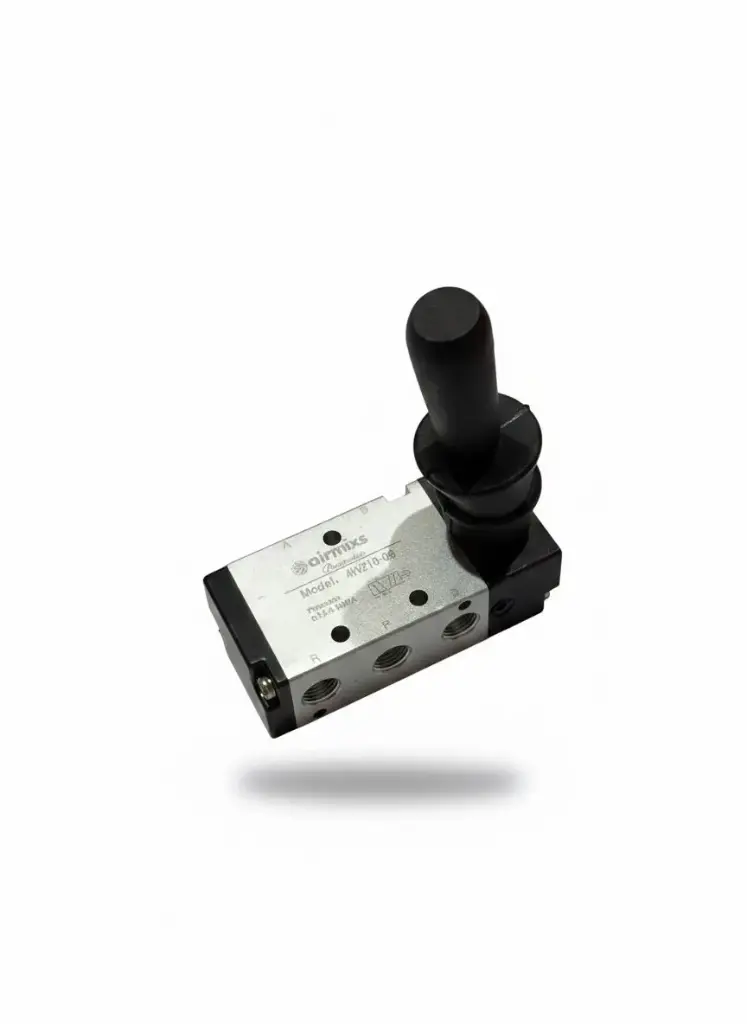

The AIRMIXS 4H210-06 is a heavy-duty, manual hand-lever-operated directional control valve designed for precise control of pneumatic actuators and cylinders. This 5-port, 2-position (5/2) valve allows the operator to manually switch the flow of compressed air, making it ideal for machinery where automated solenoid control is either not required or not possible.
Built with a high-strength aluminum alloy body and a smooth-action lever, the 4H210-06 offers a tactile, reliable response. It features a "locking" manual override style, where the lever stays in the toggled position until moved back by the operator.
Feature | Specification |
|---|
Model | 4H210-06 |
Brand | AIRMIXS |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Action Type | Manual Lever / Direct Acting |
Port Size (In/Out) | G 1/8" |
Exhaust Port Size | G 1/8" |
Working Medium | 40 Micron Filtered Compressed Air |
Operating Pressure | 0 ~ 0.8 MPa (0 ~ 116 PSI) |
Proof Pressure | 1.2 MPa (174 PSI) |
Operating Temp. | -5°C to 60°C |
Effective Orifice | 14.0 $mm^2$(Cv = 0.78) |
Lubrication | Not Required (Self-Lubricating Seals) |
Body Material | Aluminum Alloy |
