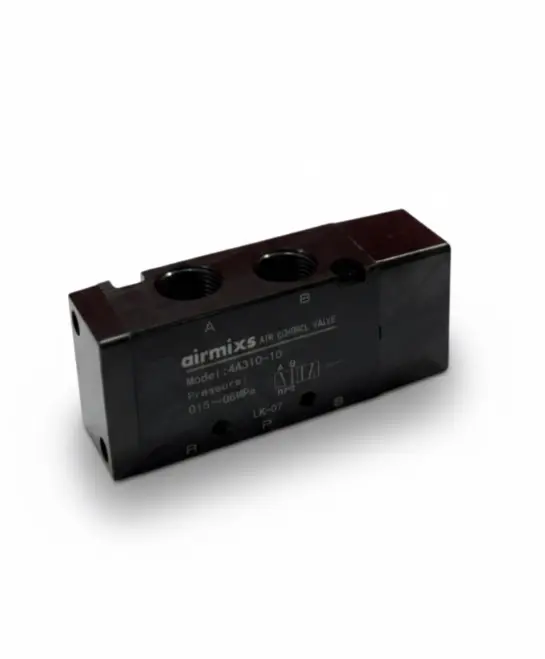

The 4A310-10 is a high-flow pneumatic control valve characterized by its sliding column structure, which provides excellent tightness and rapid response times.
Feature | Specification |
|---|
Model | 4A310-10 |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Action | Single Air Control(Spring Return) |
Port Size | Inlet/Outlet: 3/8"; Exhaust: 1/4" |
Orifice Size (Cv) | 30.0 $mm^2$(Cv = 1.68) |
Operating Pressure | 0.15 to 0.8 MPa(21 to 114 PSI) |
Max. Proof Pressure | 1.2 MPa to 1.5 MPa |
Working Temp. | -20°C to 70°C |
Max. Frequency | 4 to 5 Cycles / Second |
Material | Aluminum Alloy Body |
