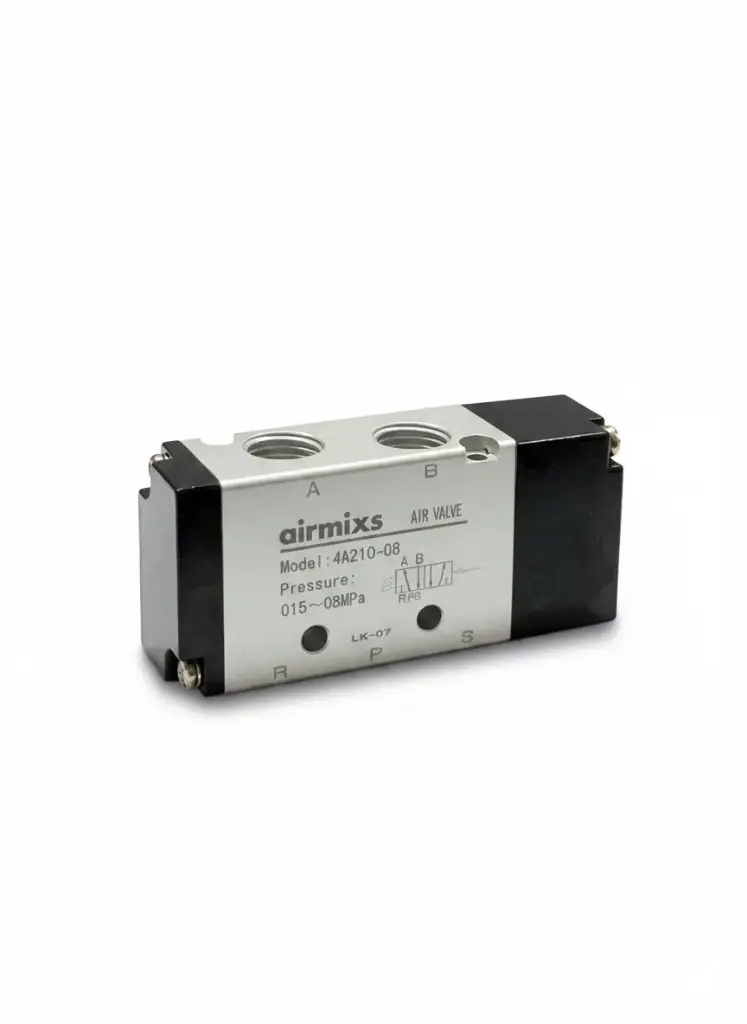

The 4A210-08 is a rugged, aluminum-body valve that provides precise directional control without the need for electrical coils. It uses a precision-ground internal spool that shifts when a pneumatic pilot signal is applied to the end of the valve.
Feature | Specification |
|---|
Model | 4A210-08 |
Valve Type | 5-Port, 2-Position (5/2-Way) |
Action Type | External Air Piloted |
Port Size | Inlet/Outlet: 1/4" BSP; Exhaust: 1/8" BSP |
Operating Pressure | 0.15 to 0.8 MPa(21 to 114 PSI) |
Proof Pressure | 1.2 MPa (175 PSI) |
Operating Temp. | -20°C to 70°C |
Lubrication | Not Required |
Material | High-strength Aluminum Alloy Body |
