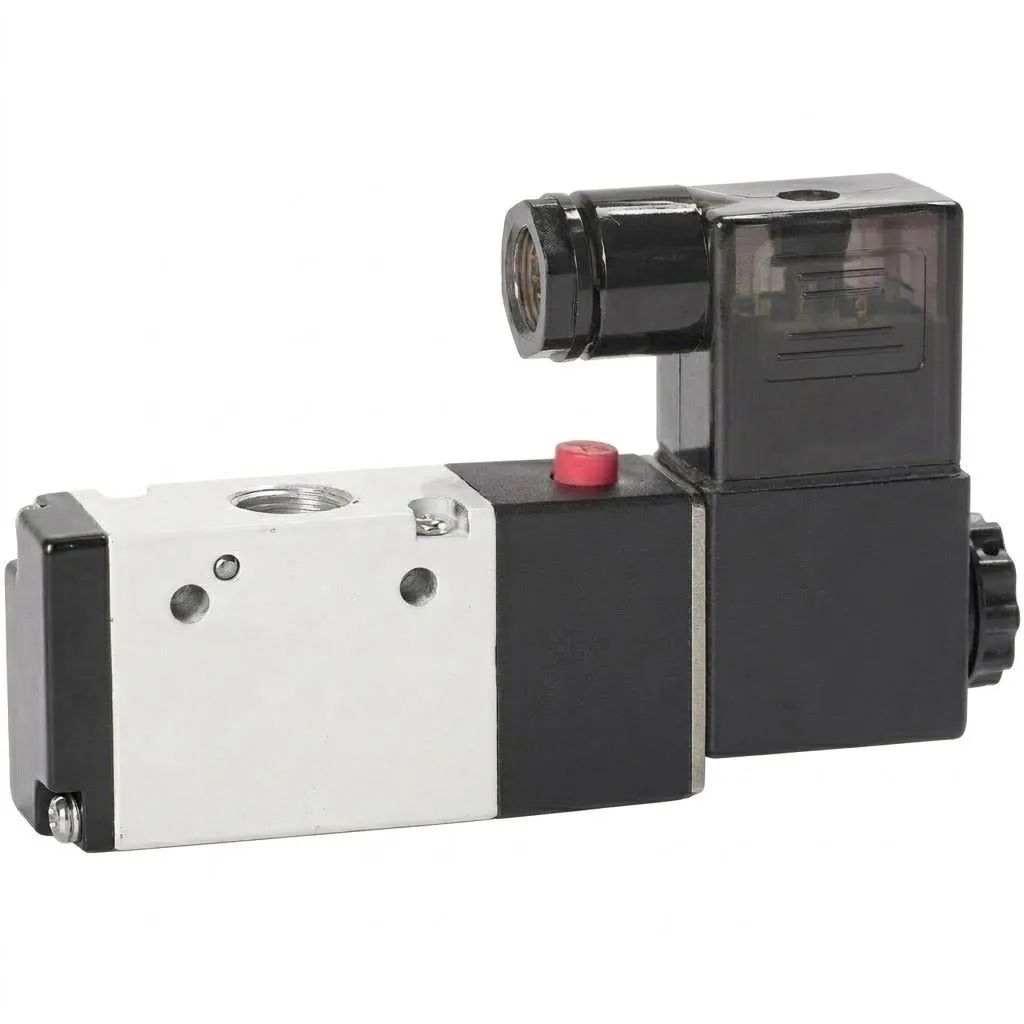

The AIRMIXS 3V310-10 DC24V is a high-flow 3/2-way single solenoid valve designed for controlling larger single-acting pneumatic cylinders, heavy air-actuated valves, and pilot systems. Driven by a 24V DC coil with an internal spring return mechanism, it automatically shifts back to its resting position when power is disconnected, providing a dependable fail-safe action in automated networks.
Featuring the larger 300-series body and standard G3/8" ports, the 3V310-10 ensures minimal pressure loss and generous air throughput (Cv 1.68) for medium-to-large pneumatic setups. It can be installed directly inline or integrated into centralized multi-station sub-base manifolds.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Model | 3V310-10-DC24V |
Valve Type | 3/2 Way (3 Ports, 2 Positions) |
Operation Type | Internally Piloted Single Solenoid |
Coil Voltage | 24V DC |
Voltage Range | ±10% |
Power Consumption | 3.0 W / 4.8 VA |
Working Medium | Air (Filtered to 40 µm) |
Port Size | In / Out / Exhaust: G3/8" (BSP) |
Effective Area | 30 mm² (Cv = 1.68) |
Operating Pressure | 0.15 – 0.8 MPa (21 – 114 PSI) |
Proof Pressure | 1.2 MPa (174 PSI) |
Operating Temperature | -5°C to 60°C (23°F to 140°F) |
Max. Operating Frequency | 5 cycles / second |
Response Time | ≤ 0.05 seconds |
Lubrication | Not required |
Protection Rating | IP65 (DIN 43650B Connector) |
