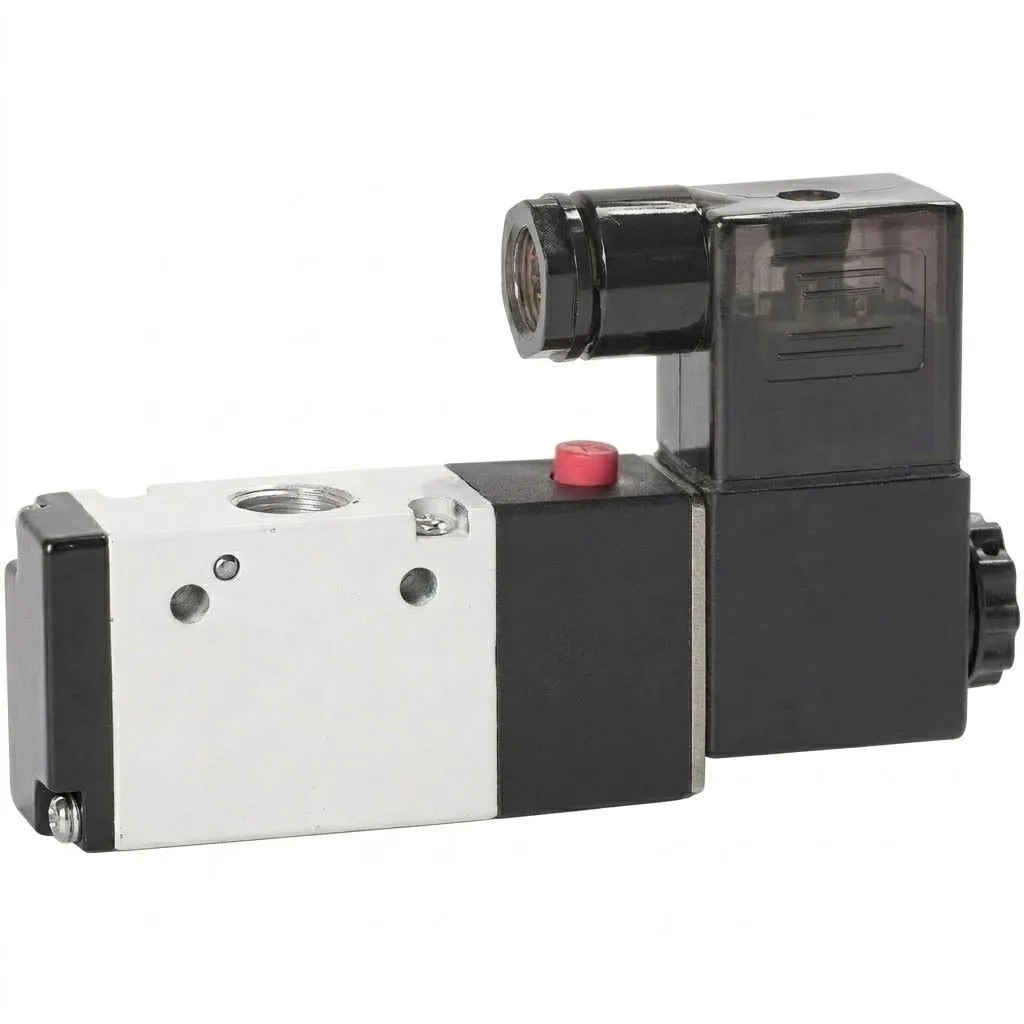

The AIRMIXS 3V110-06 DC24V is a compact 3/2-way single solenoid valve engineered for controlling single-acting pneumatic cylinders, air-actuated valves, and pilot control circuits. Operating on a 24V DC coil with an internal spring return mechanism, this valve automatically shifts back to its resting position upon power loss, providing reliable spring-return safety in automated systems.
As part of the compact 100-series, the 3V110-06 features a space-saving footprint and standard G1/8" porting, making it ideal for high-density control cabinets, small automated machinery, and direct inline pneumatic setups.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Model | 3V110-06-DC24V |
Valve Type | 3/2 Way (3 Ports, 2 Positions) |
Operation Type | Internally Piloted Single Solenoid |
Coil Voltage | 24V DC |
Voltage Range | ±10% |
Power Consumption | 3.0 W / 4.8 VA |
Working Medium | Air (Filtered to 40 µm) |
Port Size | In / Out / Exhaust: G1/8" (BSP) |
Effective Area | 12 mm² (Cv = 0.67) |
Operating Pressure | 0.15 – 0.8 MPa (21 – 114 PSI) |
Proof Pressure | 1.2 MPa (174 PSI) |
Operating Temperature | -5°C to 60°C (23°F to 140°F) |
Max. Operating Frequency | 5 cycles / second |
Response Time | ≤ 0.05 seconds |
Lubrication | Not required |
Protection Rating | IP65 (DIN 43650C Connector) |
