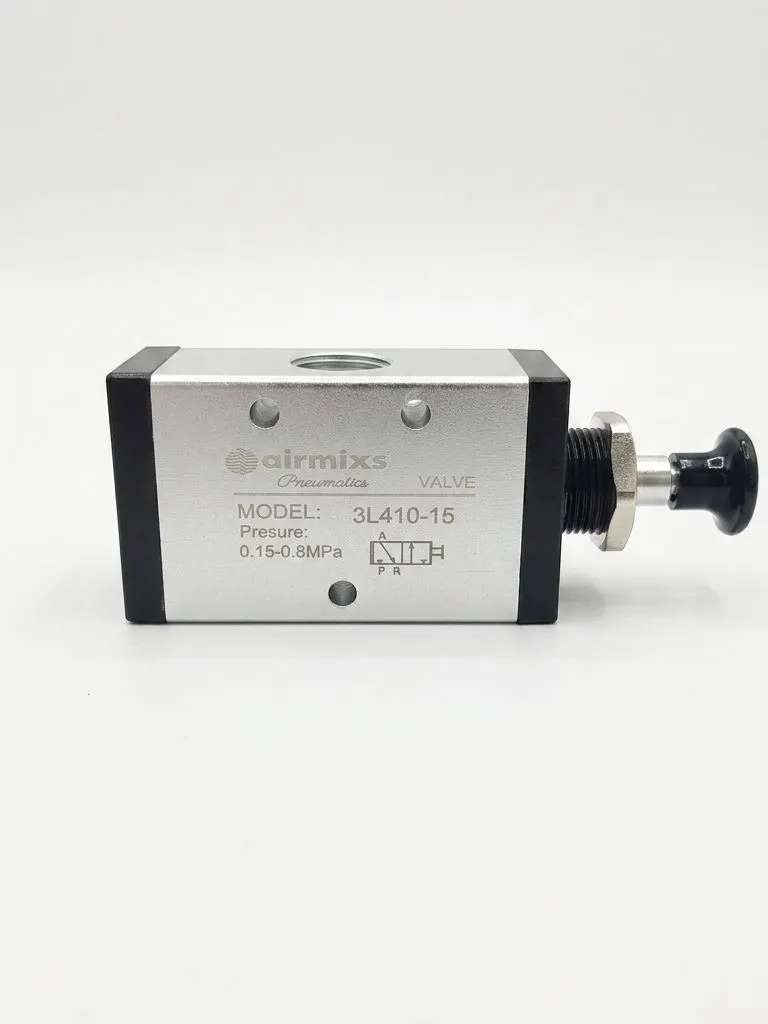

The AIRMIXS 3L410-15 is a heavy-duty manual control valve designed for high-flow pneumatic applications. As the largest model in the 3L series, it features 1/2" ports, making it the ideal choice for operating large-bore single-acting cylinders or serving as a high-capacity manual exhaust and shut-off valve in industrial air circuits.
The valve employs a "detented" manual operation, where the pull-knob stays locked in position (open or closed) until manually toggled back. Its specialized aluminum body and precision-ground internal spool ensure a smooth mechanical feel and an airtight seal even under high-cycle industrial use.
Specification | Details |
|---|
Position & Way No. | 3 Port / 2 Position |
Port Size | 1/2" BSP / NPT (Inlet P, Outlet A, Exhaust R) |
Operating Medium | 40 Micron Filtered Compressed Air |
Operating Pressure | 0.15 – 0.8 MPa (21 – 114 PSI) |
Proof Pressure | 1.2 MPa (174 PSI) |
Working Temperature | -20°C to +70°C |
Flow Capacity (Cv) | 2.79 ($50.0mm^2$Orifice) |
Lubrication | Not Required |
Material | Aluminum Alloy Body (Silver Anodized), NBR Seals |
