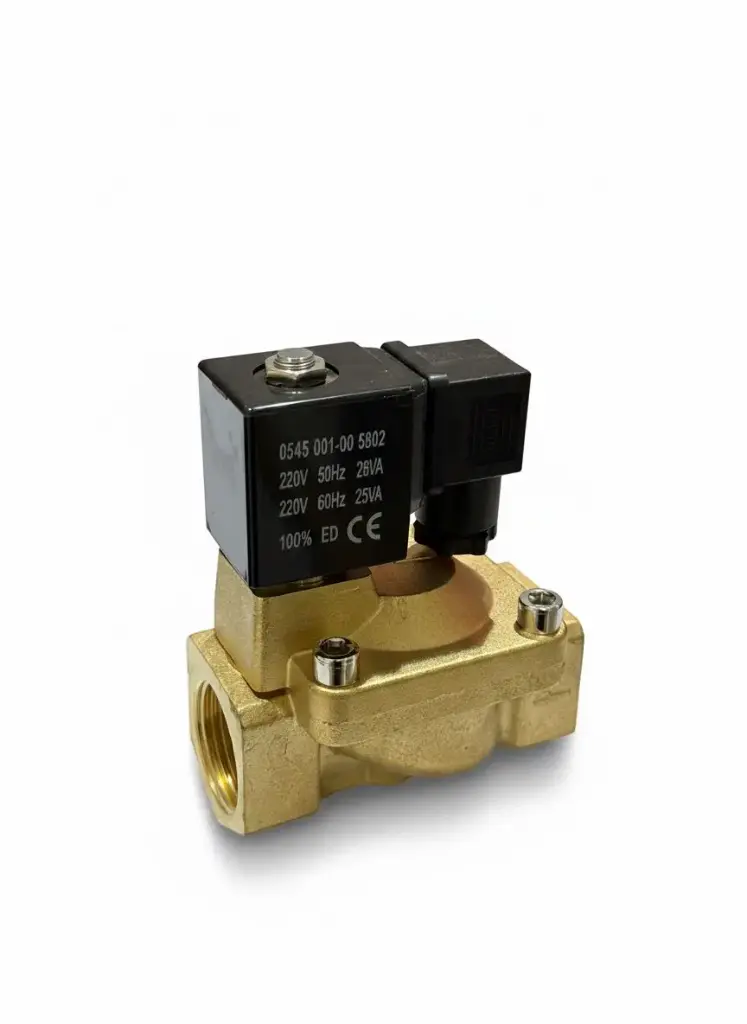

The AIRMIXS 2WH-25 is a heavy-duty, high-flow solenoid valve specifically engineered for industrial systems requiring a 1-inch (DN25) port capacity and high-pressure resilience. Built to handle standard operating pressures of 16 BAR with a maximum threshold of 20 BAR, this valve is a powerhouse for fluid control in demanding environments.
As a "Normally Closed" (NC), pilot-operated valve, it provides an immediate fail-safe shut-off. Its forged brass construction and reinforced internal diaphragm make it highly compatible with water, compressed air, and neutral gases. The AC220V coil is designed for continuous duty, ensuring the valve remains reliable even during prolonged activation periods.
Feature | Specification |
|---|
Model | 2WH-25 |
Brand | AIRMIXS |
Pipe Size (Port) | G 1" (DN25) |
Action Type | 2-Way, 2-Position, Pilot Operated |
Circuit State | Normally Closed (NC) |
Operating Pressure | 0.05 MPa – 1.6 MPa (0.5 – 16 BAR) |
Max Pressure | 2.0 MPa (20 BAR) |
Voltage | AC 220V(50/60Hz) |
Orifice Diameter | 25 mm |
Body Material | High-Grade Forged Brass |
Seal Material | Reinforced NBR (Standard) / Viton (Optional) |
Coil Duty | 100% ED (Continuous Duty), IP65 Rated |
