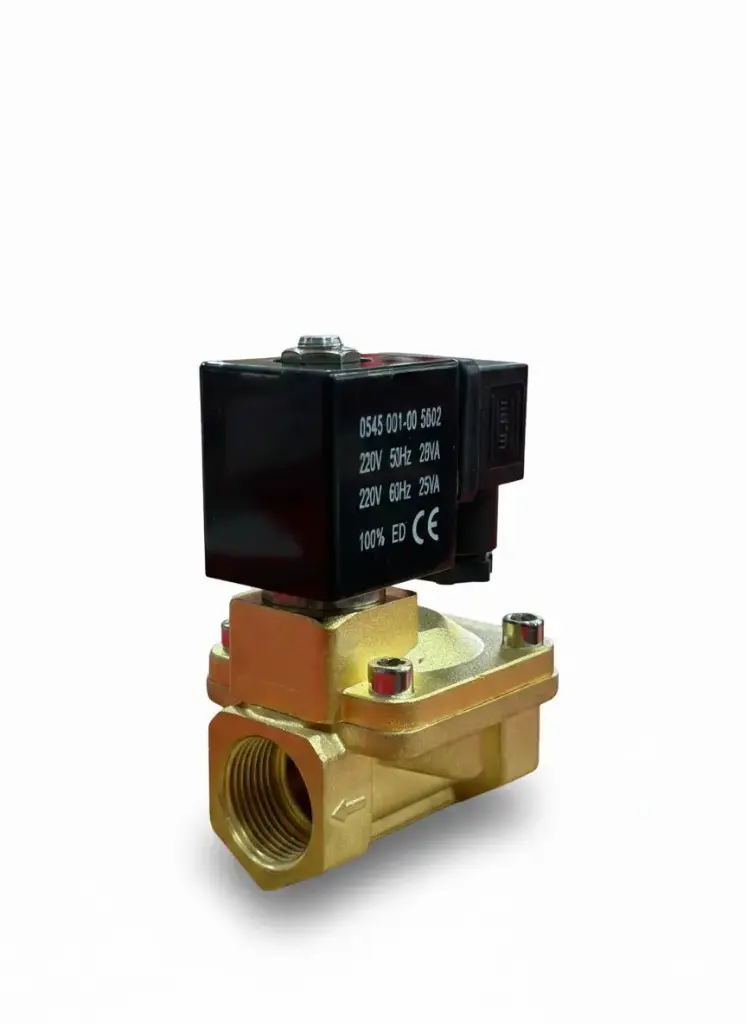

The AIRMIXS 2WH-15 is a professional-grade, pilot-operated electromagnetic valve designed for high-pressure fluid control. This specific model is engineered to operate safely at pressures up to 16 BAR, making it ideal for industrial systems that exceed the capacity of standard 10-bar valves.
With a 1/2" pipe size and a robust forged brass construction, the 2WH-15 is a "Normally Closed" valve, ensuring a reliable shut-off for water, air, and neutral gases. It is powered by a standard AC220V industrial coil, designed for 24/7 continuous duty (100% ED) in automation, high-pressure cleaning, and water treatment applications.
Feature | Specification |
|---|
Model | 2WH-15 |
Brand | AIRMIXS |
Pipe Size (Port) | G 1/2" |
Voltage | AC 220V(50/60Hz) |
Operating Pressure | 0.5 – 16 BAR(7.25 – 232 PSI) |
Max Proof Pressure | 2.5 MPa (25 BAR) |
Circuit Type | 2-Way, 2-Position, Normally Closed (NC) |
Orifice Diameter | 15 mm |
Body Material | High-Quality Forged Brass |
Coil Rating | 100% ED (Continuous Duty), CE Certified |
Protection Class | IP65 (Dust/Water Resistance) |
