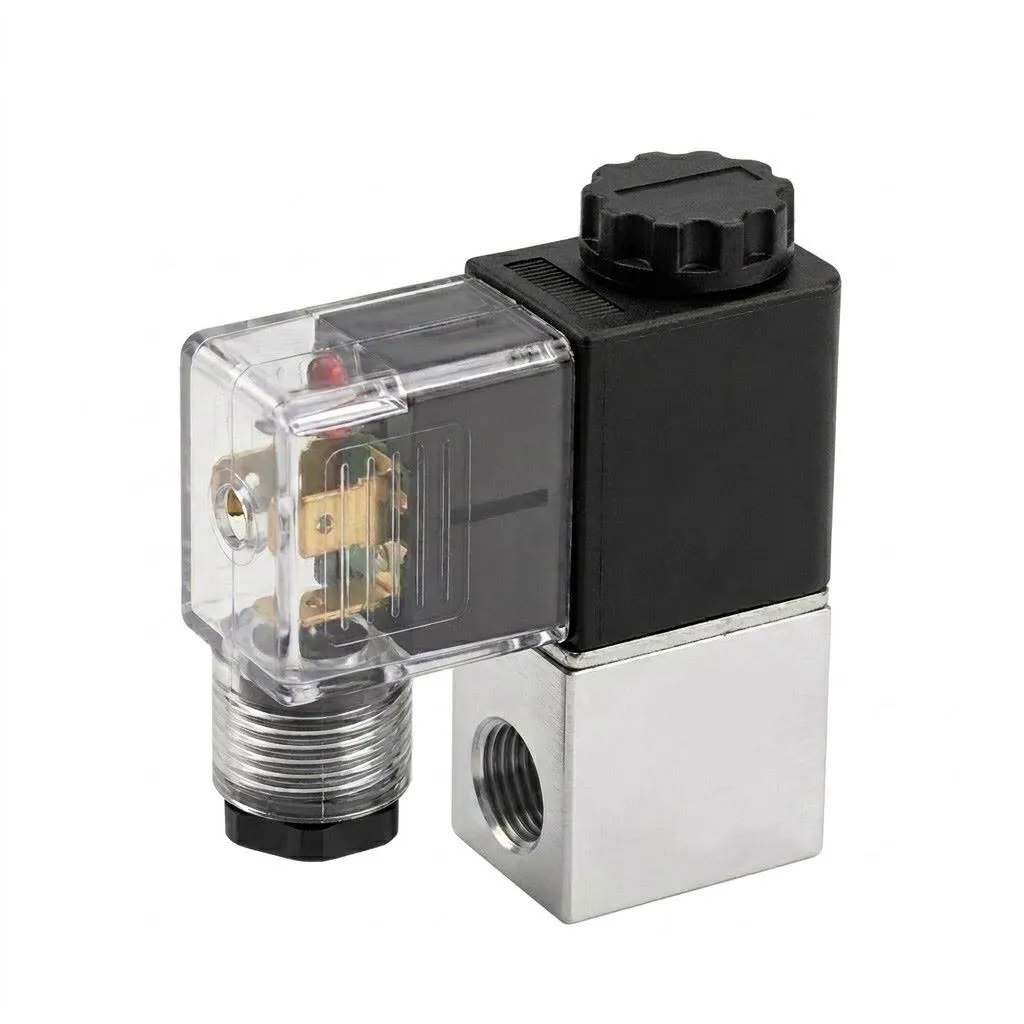

The AIRMIXS 2V025-08 AC220V is a compact, direct-acting 2/2-way normally closed solenoid valve engineered for precise liquid and gas flow control in industrial automation and fluid dispensing applications. Operating on standard 220V AC power, this valve remains closed until energized, instantly opening to permit medium flow and shutting off immediately when power is cut.
Featuring a direct-acting mechanism, the 2V025-08 operates effectively from zero differential pressure, making it ideal for low-pressure systems, gravity-fed lines, and automated fluid control circuits. Its compact structure and standard G1/4" female threaded ports allow for seamless inline integration in space-constrained layouts.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Model | 2V025-08-AC220V |
Valve Type | 2/2 Way (2 Ports, 2 Positions) |
Initial State | Normally Closed (N/C) |
Operation Type | Direct-Acting |
Coil Voltage | 220V AC (50/60Hz) |
Voltage Range | ±10% |
Power Consumption | 6.0 VA (Apparent Power) |
Working Medium | Air, Water, Oil, Neutral Gases |
Port Size | In / Out: G1/4" (BSP) |
Orifice Size | 2.5 mm |
Cv Value | 0.23 |
Operating Pressure | 0 – 0.8 MPa (0 – 116 PSI) |
Proof Pressure | 1.0 MPa (145 PSI) |
Operating Temperature | -5°C to 80°C (23°F to 176°F) |
Max. Operating Frequency | 10 cycles / second |
Response Time | ≤ 0.02 seconds |
Lubrication | Not required |
Protection Rating | IP65 (DIN / Grommet Lead Wire Connection) |
