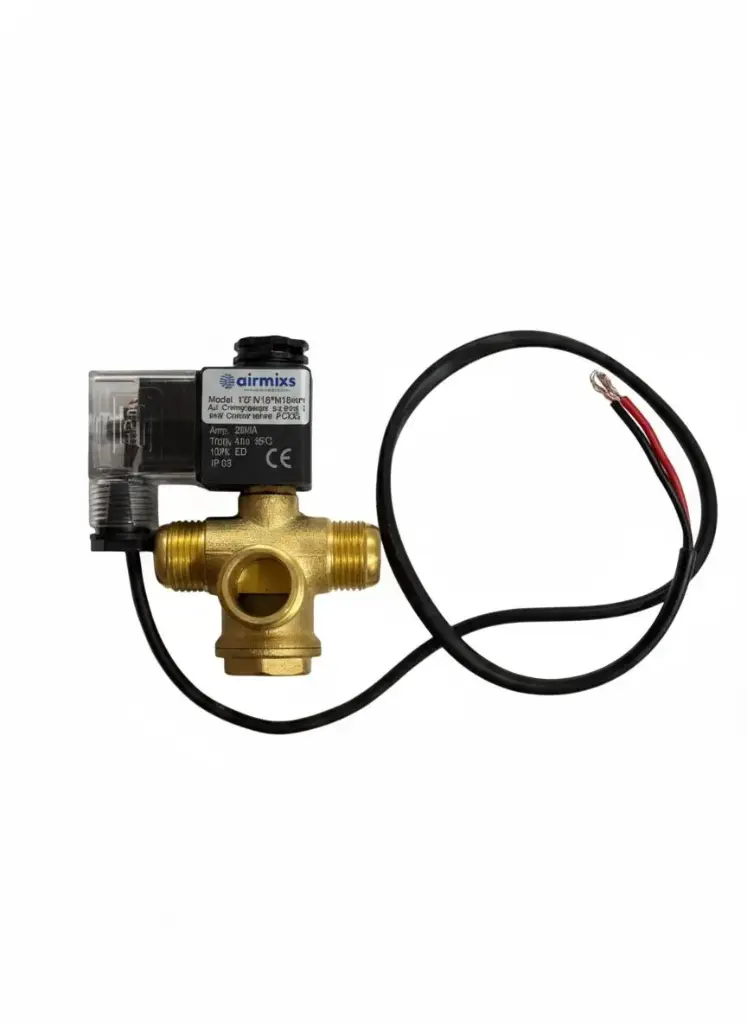

The 1/2" Air Compressor Solenoid Valve acts as the primary control gate for air distribution and system pressure relief. By utilizing an electromagnetic coil, it precisely opens or closes the air path to ensure the compressor starts without back-pressure, significantly extending the life of the machine’s electrical components.
Feature | Specification |
|---|
Port Size | 1/2" BSP / G / NPT |
Valve Function | 2-Way Normally Open (NO) or Normally Closed (NC) |
Operation Type | Direct Acting or Pilot Operated Diaphragm |
Orifice Size | 15mm to 20mm |
Operating Pressure | 0 to 16 bar(Standard) / Up to 40 bar(High Pressure) |
Voltage Options | 24V DC / 110V AC / 220V AC |
Power Consumption | AC: 20VA / DC: 15W |
Material | Forged Brass Body with Stainless Steel Internal Parts |
Protection Class | IP65(Dust and Water Resistance) |
